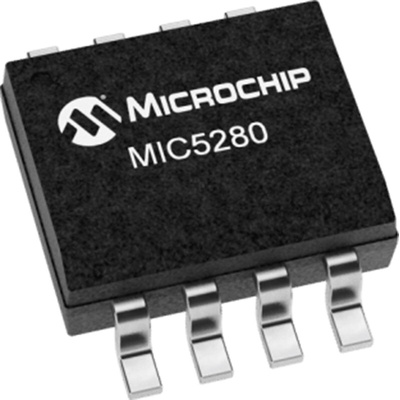

Microchip MIC5280YME, 1 Low Dropout Voltage, Voltage Regulator 25mA, 1.21 → 5 V 8-Pin, SOIC, Регулятор напряжения

1770717
Номер производителя: MIC5280YMEПроизводитель: Microchip
Цена за шт. (норма упаковки 10 шт)
196.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

The MIC5280 is a high performance, low dropout regulator, offering a very low noise output with a very wide input voltage operating range, up to 120V DC input voltage.Ideal for high input voltage applications such as industrial and telecom, the MIC5280 offers 2% initial accuracy, extremely high power supply rejection ratio (PSRR >80dB) and low ground current (typically 31μA).

Wide input voltage range: 4.5V to 120V DC
Very low quiescent current: 31μA typical
25mA guaranteed output current
Adjustable output from 1.215V to 5V
DC voltage protection down to -24V
Ability to withstand up to +120V DC at the input
Wide input voltage range: 4.5V to 120V DC
Very low quiescent current: 31μA typical
25mA guaranteed output current
Adjustable output from 1.215V to 5V
DC voltage protection down to -24V
Ability to withstand up to +120V DC at the input
