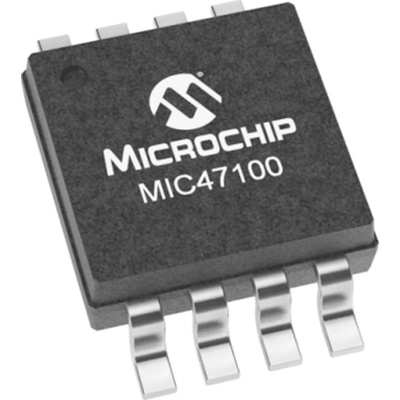

Microchip MIC47100YMME, 1 Low Dropout Voltage, Voltage Regulator 1A, 0.8 → 2 V 8-Pin, MSOP, Регулятор напряжения

The MIC47100 is a high speed, low VIN LDO capable of delivering up to 1A and designed to take advantage of point-of-load applications that use multiple supply rails to generate a low-voltage, high-current power supply. The MIC47100 is stable with only a 1μF ceramic output capacitor and is available in a thermally enhanced, making it an optimal solution for board-constrained applications.

Operating voltage range:
Input Supply: 1.0V to 3.6V
Bias Supply: 2.3V to 5.5V
0.8V to 2.0V output voltage range
High bandwidth: very fast transient response
PSRR >50dB at 100kHz
Stable with a 1μF ceramic output capacitor
Low dropout voltage of 80mV at 1A
High output voltage accuracy:
±1.5% initial accuracy
±2% over temperature
Logic level enable input
UVLO on both supply voltages for easy turn-on
ePad MSOP-8: small form factor power package
