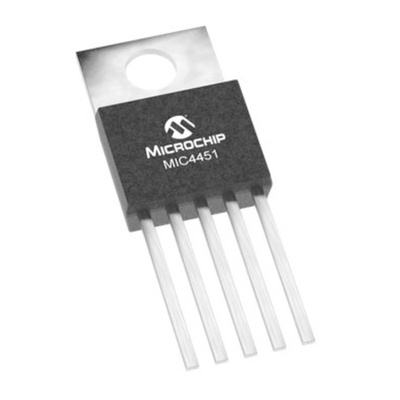

Microchip MIC4451ZT, MOSFET 1, 12 A, 20V 5-Pin, TO-220

MIC4451 and MIC4452 CMOS MOSFET drivers are tough, efficient, and easy to use. The MIC4451 is an inverting driver, while the MIC4452 is a non-inverting driver. Both versions are capable of 12A (peak) output and can drive the largest MOSFETs with an improved safe operating margin.

BiCMOS/DMOS construction
Latch-up proof: fully isolated process is inherently immune to any latch-up.
Input will withstand negative swing of up to 5V
Matched rise and fall times 25ns
High peak output current 12A peak
Wide operating range 4.5V to 18V
BiCMOS/DMOS construction
Latch-up proof: fully isolated process is inherently immune to any latch-up.
Input will withstand negative swing of up to 5V
Matched rise and fall times 25ns
High peak output current 12A peak
Wide operating range 4.5V to 18V
High capacitive load drive 62,000pF
Low delay time 30ns typ.
Logic high input for any voltage from 2.4V to VS
Low equivalent input capacitance (typ.) 7pF
