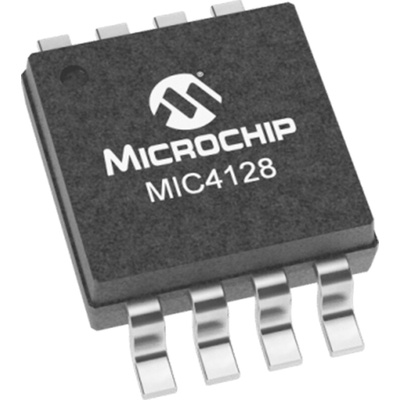

Microchip MIC4128YMME, MOSFET 2, 1.5 A, 20V 8-Pin, MSOP

The MIC4126, MIC4127, and MIC4128 family are highly-reliable dual 1.5A low-side MOSFET drivers fabricated on BiCMOS/DMOS process. The devices feature low power consumption and high efficiency. The MIC4126/27/28 translate TTL or CMOS input logic levels to output voltage levels that swing within 25mV of the positive supply or ground whereas comparable bipolar devices are capable of swinging only to within 1V of the supply..

Exposed backside pad packaging reduces heat
Bipolar/CMOS/DMOS construction
25mV maximum output offset from supply or ground
Latch-up protection to >500mA reverse current
Switches 1000pF in 25ns
Logic-input threshold independent of supply voltage
Logic-input protection to -5V
6pF typical equivalent input capacitance
Dual inverting, dual non-inverting, and complementary configurations
-40°C to +125°C operating junction temperature range
