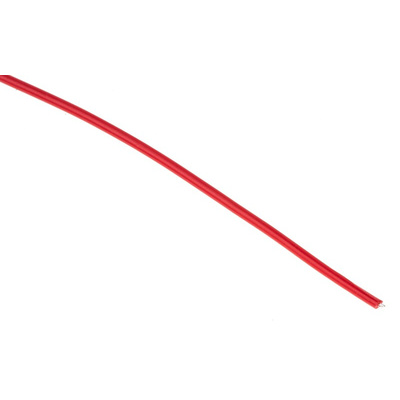

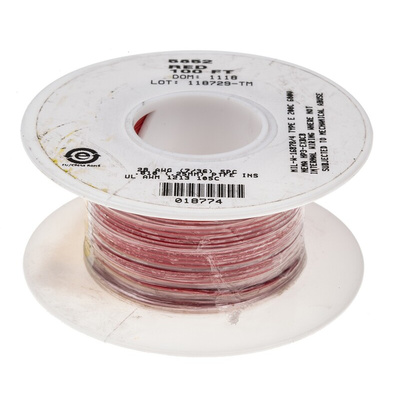

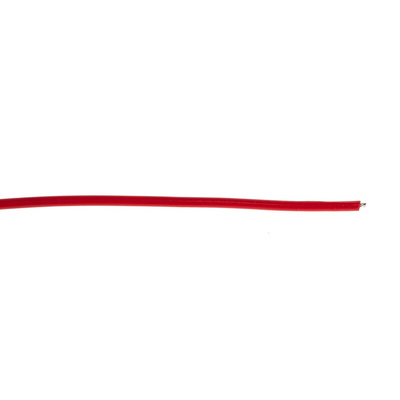

5852 RD005, Alpha Wire Premium Series Red 0.09 mm² Hook Up Wire, 28 AWG, 7/0.13 mm, 30m, PTFE Insulation

Belden Alpha Wire Hook Up Wire, 0.07μH/ft Inductance, 1.7Lbs Maximum Pull Tension - Premium Series - 5852 RD005

Looking for a reliable way to get connected in tough conditions? Go for this hook up wire from Belden's Alpha Wire range. It works in challenging temperatures between -60°C and +200°C, so it stays cool under pressure. The cable comes unterminated so you can pick an adapter that suits your setup. Thanks to PTFE insulation but no shielding, this is a flexible option that protects you from electric shocks.

Features & Benefits

• Voltage rating of 600V makes it suitable for medium-duty applications
• Cable length of 30m means you get enough for lots of jobs
• 7 highly conductive silver-plated copper strands for reliable performance
• Red sheath for easy identification

Applications

• Commercial buildings
• Industrial automation
• High-temperature ovens

How do I protect this hook up wire in extreme conditions?

You can make this wire even more robust by covering it with heat-shrink tubing (821-4702).
