5854/7 RD005, Alpha Wire Premium Series Red 0.23 mm² Hook Up Wire, 24 AWG, 7/0.20 mm, 30m, PTFE Insulation

Belden Alpha Wire Red Hook-Up Wire, 0.23mm² Cross-Sectional Area, 30m Length - Premium Series - 5854/7 RD005

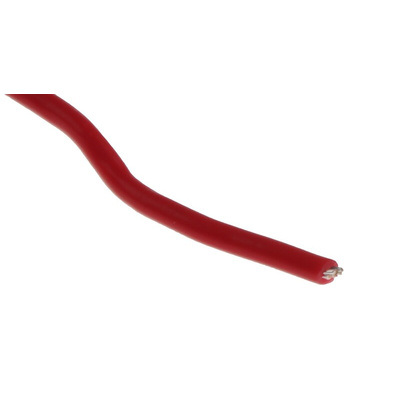

Use this lead wire from Belden's Alpha Wire range in your enclosed electrical equipment and motors. It has a single-core conductor made from silver-plated copper material. This is highly conductive and can withstand a broad temperature range between -60°C and +200°C, making this wire suitable for use in harsh industrial environments. PTFE (polytetrafluoroethylene) insulation material offers heightened resistance against abrasion. A 3.5lbs pull tension means the cable withstands stretching and high-pressure applications, while the vivid red colour makes it easy to identify.

Features & Benefits

• 30m length for can be cut and terminated to suit your application
• Bend radius ten times the cable diameter for easy insertion in tight spaces
• 1.12mm thick outer diameter for flexibility

Applications

• Medical technology
• Military equipment
• Agricultural industry
• Electrical circuits

Where should I use an unshielded cable?

Unshielded cables like this one from the Belden brand Alpha Wire have no foil material around the wire. This makes them ideal for use in places without EMI (electromagnetic interference). This type of wire is quick and easy to use because it can be installed without needing drain wires for grounding.
