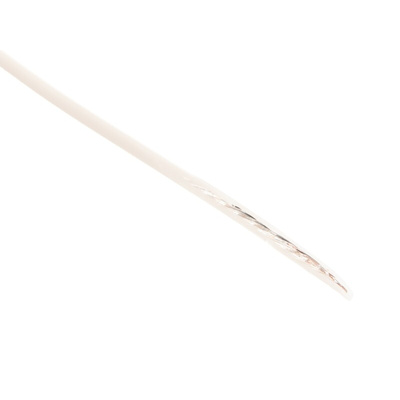

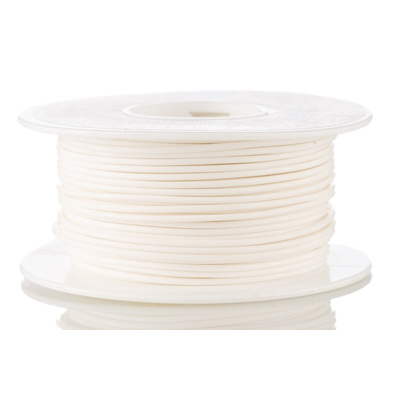

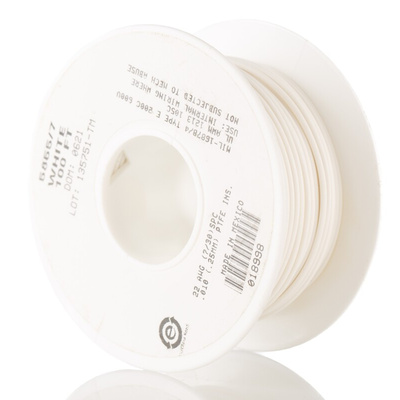

5855/7 WH005, Alpha Wire Premium Series White 0.35 mm² Hook Up Wire, 22 AWG, 7/0.25 mm, 30m, PTFE Insulation

Belden Alpha Wire White Hook Up Wire, 22 AWG, 30m Length - Premium Series - 5855/7 WH005

Looking for a strong and reliable solution for domestic and industrial wiring? Try this hook up wire from Belden's Alpha Wire range. It has silver-plated copper conductors that are corrosion resistant, so it won't decay easily if exposed to moisture or dissimilar metals. It also has a polytetrafluoroethylene (PTFE) sheath that's durable and abrasion-resistant, which means it resists scratching or breaking. This material also provides excellent insulation, so you're protected against the risk of electric shocks. Use this wire to connect a wide range of electrical devices, such as motors and switchboards.

Features & Benefits

• Versatile length of 30m ensures the coil is easy to transport and handle
• Operating temperature range of -60°C to +200°C for reliable use in extreme industrial environments

Applications

• High-temperature ovens
• Small industrial motors
• Control cabinets

What's the bend radius of this hook up wire?

The bend radius of this hook up wire is ten times its diameter. This means you can bend it up to 12.7mm without damaging it or shortening its life.
