5855/7 RD005, Alpha Wire Premium Series Red 0.35 mm² Hook Up Wire, 22 AWG, 7/0.25 mm, 30m, PTFE Insulation

Belden Alpha Wire Teflon Insulated Hook-Up Wire, 0.35mm² Cross-Sectional Area, 30m Length - Premium Series - 5855/7 RD005

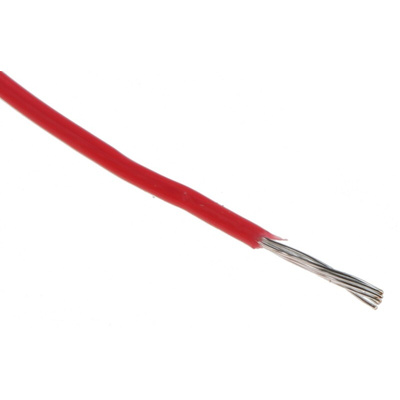

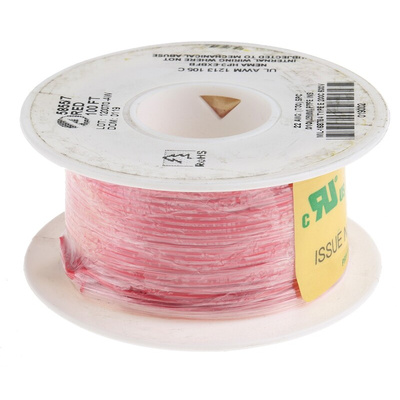

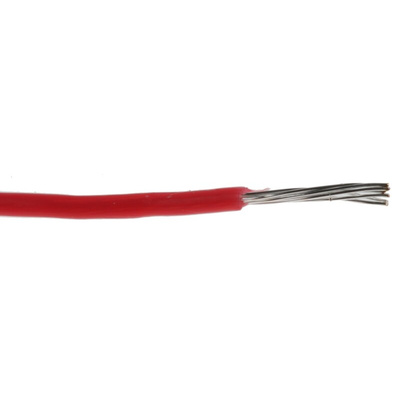

Choose this hook-up wire from Belden's Alpha Wire range to connect internal components in your electronic equipment. You can use it in a range of applications including power relays, control panels and motors. The wire is 30m long and comes on a reel, so it's convenient to handle and store. The PTFE (polytetrafluoroethylene) insulation material is 0.3mm thick and protects the core effectively in harsh settings. You can use this wire in temperatures ranging between -60°C and +200°C, which makes it a versatile choice for industrial environments.

Features & Benefits

• Immediately visible red insulation for easy colour coding
• Silver-plated copper conductor material prevents overheating for long-term use
• Bend radius 10 times the cable diameter for flexibility

Applications

• Electrical meters
• Automotive engineering
• Medical equipment
• IT systems

Can I solder this hook-up wire?

Yes – you can solder this wire to an electrical circuit board to create a secure connection. Simply strip the end of the wire and twist it. Heat it up with a soldering iron and attach it to a coil until it adheres firmly.
