Keysight Technologies DAQ970A Data Acquisition System, 120 Channel(s), LAN, USB, 22 bit, Устройство сбора данных

DAQ970A Data Acquisition System

Keysight have embedded the measurement engine from their best benchtop DMM in to a 3-slot mainframe. With a scan rate of up to 450 channels/sec, built-in signal conditioning, compact design and modular flexibility this system allows the user to sample more signals quickly and accurately. DAQ-970A has 6 1/2 digits (22bits) of resolution, ultra-low noise and 0.004% dcV accuracy.
Collecting data is simple with a built in USB memory port which needs no PC connection. USB flash drives can be used to data log and extend the device memory or transfer data more efficiently.

Features and Benefits:

• Autocalibration - Built in internal module calibration to reduce thermal voltage offset errors
• Ability to measure a wide array of current ranges 1 μA DC and 100 μA AC up to 1000 MΩ

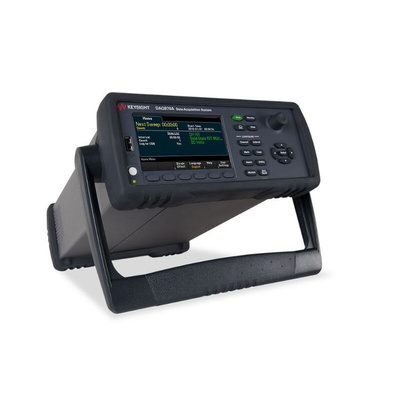

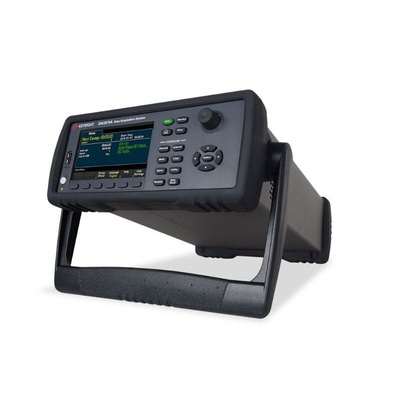

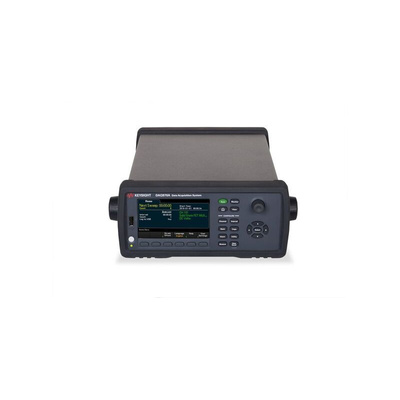

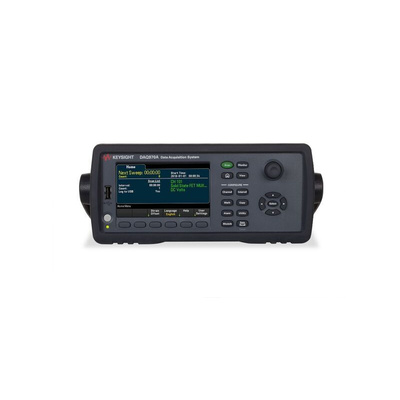

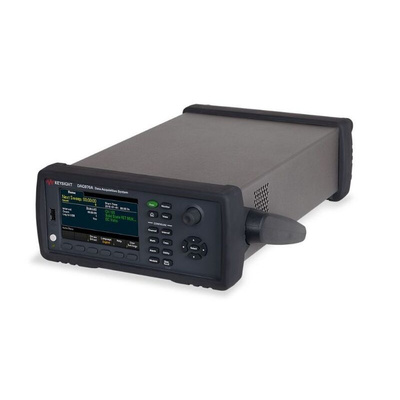

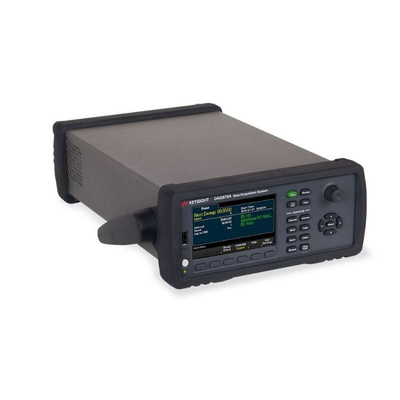

• User interface features LCD screen with soft keys - simple measurement display and configuration
• SCPI language programming compatible with 34970A/34972A

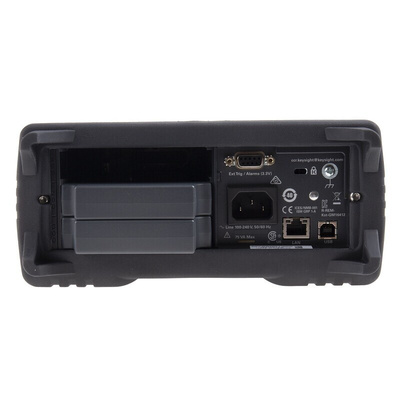

• LAN and USB connectivity
• Graphical Web interface built in allowing easy access on any operating system which supports a web browser eliminating need for software
• 26bit event counter
• Two 16-bit analog outputs
• Two 8-bit digital I/O ports
• Types of measurements – temperature, voltage, current, resistance, frequency, diode and capacitance

DAQ970A: Basic data acquisition, static measurements, replaces the existing 34970A/72A with several improvements The DAQ970A has improved temperature measurements, faster scanning speeds, and a new solid-state multiplexer. The DAQ970A Series of data acquisition systems is the next generation of DAQ solutions from Keysight. They are easy to configure and run. Measure multiple signal types including volts, current, resistance, temperature, and frequency.
