Keysight Technologies DAQM900A Data Acquisition Express Serial Card for DAQ970 Data Acquisition System

Keysight Technologies Multiplexer

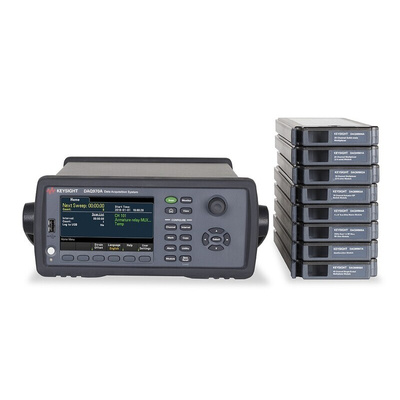

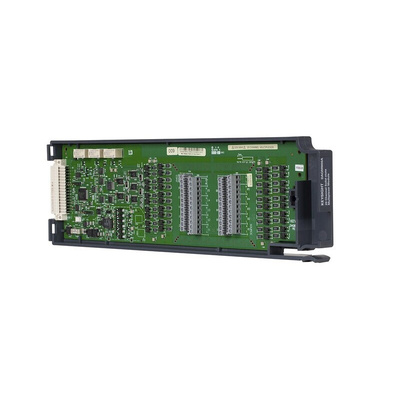

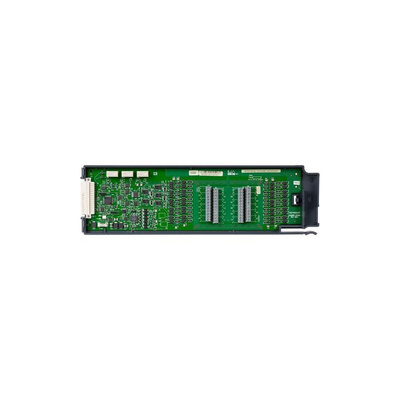

The Keysight Technologies data acquisition 20 channel multiplexer is a module divided into two banks of 10. Each channel has a 2-wire connection. All 20 channels switch both HI and LO inputs, thus providing fully isolated inputs to the internal DMM or an external instrument. It is compatible with 12 different input signals temperature with thermocouples, RTDs and thermistors, the voltage in AC/DC, two or four-wire resistance, frequency and period, currents in AC/DC and capacitance. During four-wire resistance measurements, channels from the bank are automatically paired with channels from bank B to provide the source and sense connections. The module has a built-in thermocouple reference junction to minimize errors due to thermal gradients when measuring thermocouples.

Features and Benefits

• Built-in signal conditioning mechanism
• Ultra low reading noise
• 120V switching capability
• Scan rates up to 450 channels per second
• Provision for two and four wire scanning
• High-resolution of 22-bits
• Powerful measurement performance with flexibility
• Cost effective
• Supports USB flash drive to copy and log data in standalone applications
• Controls instruments is possible using web browsers like chrome and internet explorer

Applications

• Environmental chamber monitoring
• Component inspection
• Benchtop testing
• Process troubleshooting
• Temperature profiling
• Industrial automation systems
• IoT Networks
