DAQM901A, Keysight Technologies Data Acquisition Express Serial Card for Use with DAQ970A Data Acquisition System

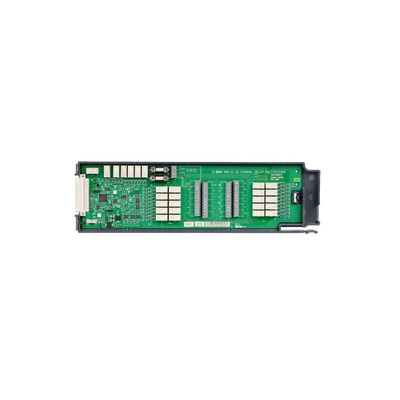

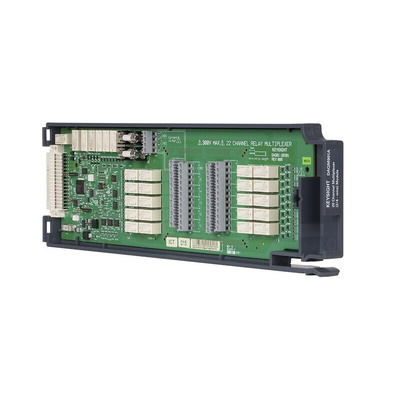

Keysight Technologies Multiplexer Module For Use With DAQ970 Data Acquisition System, 20 Channels - DAQM901A

Use this multiplexer module from Keysight Technologies to transfer input signals to your central processing system. It accepts digital inputs from up to 22 channels, making it a versatile choice. As the device has a high scan rate of 80 channels per second, it can monitor several data acquisition applications simultaneously. For ease of use, it accommodates both two-wire and four-wire channels. This versatile module measures both AC and DC current, so there's no need to use an external shunt resistor.

Features & Benefits

• Rapid opening and closing speed of 120 channels per second for quick signal transfer
• Rated load switch life of 100,000 operations for long-lasting performance
• Broad operating temperature range of 0°C to +55°C for use in demanding conditions
• Channel-to-channel isolation minimises interference and supports reliable data communication

Applications

• Benchtop testing
• Environmental chamber monitoring
• Process troubleshooting
• Temperature profiling

What data acquisition system is this multiplexer module compatible with?

This multiplexer module is designed for use with the Keysight Technologies DAQ970 data acquisition system (177-1106). The versatile system is suitable for measuring everything from temperature and AC/DC voltages to resistance, frequency and current.

Supplied with
type":"Supplied with",

1 DAQM901A, 20 Channel Multiplexer Module
Functional Test Certificates are listed in the technical reference.
