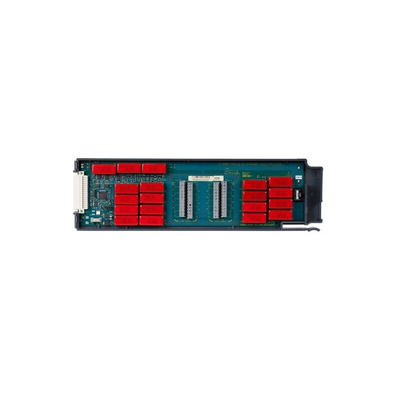

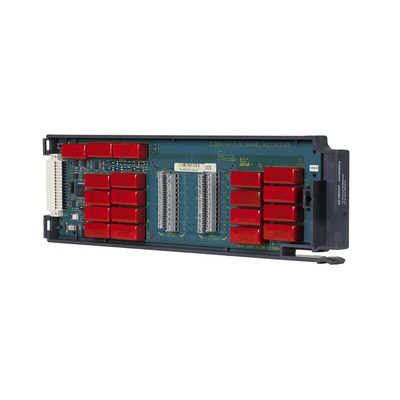

Keysight Technologies DAQM902A Data Acquisition Module for DAQ970 Data Acquisition System

Keysight Technologies Multiplexer

The Keysight Technologies data acquisition 16 channel multiplexer is the most versatile multiplexer for industrial purpose scanning. The reed relays achieve scan rates up to 250 channels per second. This module is used for high throughput automated test applications, as well as high-speed data logging and monitoring tasks. Sixteen 2-wire inputs can switch up to 300V. Two and four-wire channels may be mixed on the same module. User-provided shunt resistors are required for current measurements.

Features and Benefits

• 300V switching capability
• Two and four wire scanning
• Built-in thermocouple reference junction
• Offers graphic web interface and easy monitoring of results using standard LAN
• High scan rate up to 250 channels per second
• Controls instruments using web browsers like chrome and internet explorer
• Supports USB flash drive for copying and logging data in standalone applications
• Ultra low reading noise
• Built-in signal conditioning mechanism
• High-resolution of 22-bits
• Powerful measurement performance with flexibility
• Cost effective

Applications

• Environmental chamber monitoring
• Component inspection
• Benchtop testing
• Process troubleshooting
• Temperature profiling.
• Industrial automation systems
• IoT Networks
