Keysight Technologies DAQM904A Data Acquisition Multiplexer for DAQ970 Data Acquisition System

Keysight Technologies Multiplexer

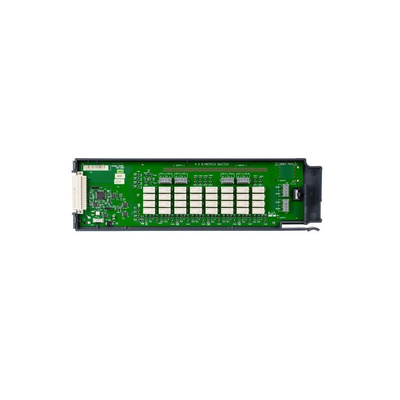

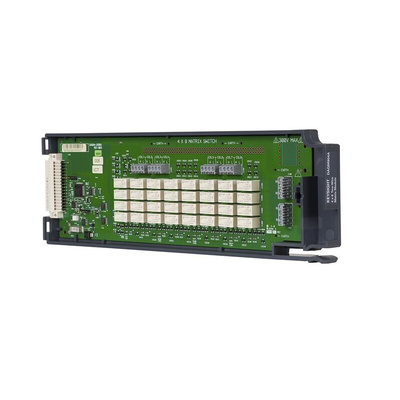

The Keysight Technologies data acquisition 2-wire matrix module that provides the most flexible connection path between a device under test and the test equipment, allowing different instruments to be connected to multiple points on the DUT at the same time. Rows or columns may be connected between multiple modules to build 8x8, 4x16 or larger matrices, with up to 96 cross points in a single frame.

Features and Benefits

• Scan rates up to 120 channels per second
• Controls instruments using web browsers like chrome and internet explorer
• Supports USB flash drive to copy and log data in standalone applications.
• Built-in signal conditioning mechanism
• High-resolution of 22-bits
• Powerful measurement performance with flexibility
• Cost effective
• 32, 2 wire cross points

Applications

• Environmental chamber monitoring
• Component inspection
• Benchtop testing
• Process troubleshooting
• Temperature profiling
• Industrial automation systems
• IoT Networks
