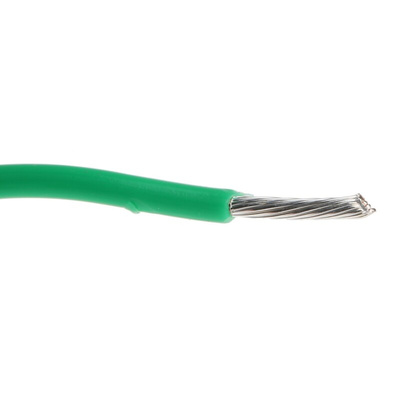

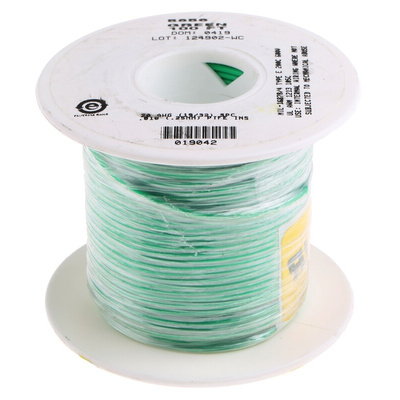

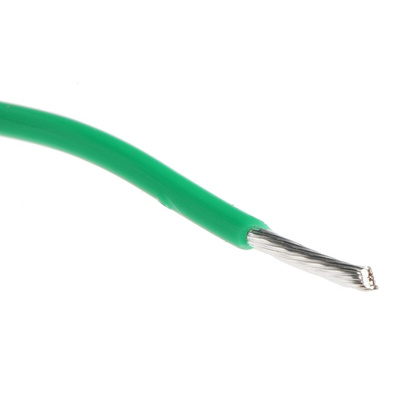

5856 GR005, Alpha Wire Premium Series Green 0.62 mm² Hook Up Wire, 20 AWG, 19/0.20 mm, 30m, PTFE Insulation

Belden Alpha Wire Hook Up Wire, PTFE, 600 V, Premium series - 5856 GR005

Establish efficient, stable electrical connections in machinery and equipment even in the most challenging environments with the 5856 Hook Up Wire by Belden, Alpha Wire.
This wire uses silver-plated copper conductors which guard against corrosion and allow it to withstand use in hot and humid environments. It has an impressive operating temperature range of -60 to 200°C, making it ideal for use in high-temperature installations such as ovens. It also has 9.6lbs maximum pull tension and a bend radius of 10x the cable diameter. This 5856 wire is 30m and 20 AWG.

Features and Benefits:

• Green sheath for easy identification in a control circuit
• PTFE insulation offers high chemical and solvent resistance and excellent electrical properties
• Designed for simple handling, stripping and termination

Does this wire have a stranded or solid conductor?

This wire features a 19/32 stranded conductor. Stranded conductors ensure much greater flexibility for the cable than solid conductors and are therefore easier to install. They can also withstand high vibration.
