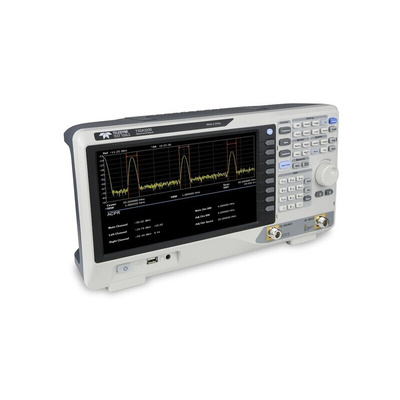

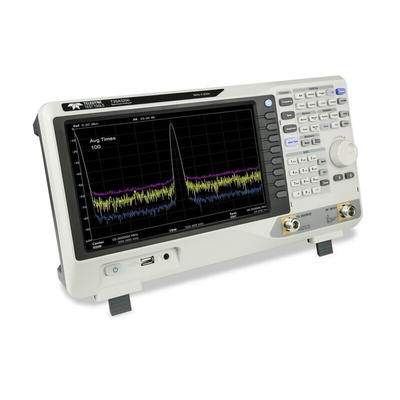

Teledyne LeCroy T3SA3200 Desktop Spectrum Analyser, 9 kHz → 3.2 GHz, Анализатор спектра

Teledyne LeCroy T3SA3000 Series Spectrum Analysers

Spectrum Analysers are instruments used by engineers and technicians in the electronics industry to examine and analyze the frequency spectrum of RF (radio frequency) and audio signals. Spectrum analysers enable you to measure the input signals along with the frequency range. They are an indispensable tool in any workshop, laboratory or test station

T3SA3100 and T3SA3200 Spectrum Analysers

The Teledyne LeCroy T3SA3000 series of spectrum analysers offer a frequency range of 9KHz to 2.1 GHz (T3SA3100) or 9KHz to 3.2 GHz (T3SA3200). Robustly designed and highly reliable the T3SA3000 series of analysers boasts a wide range of advanced measurement functions. With an intuitive, easy to use menu and built-in front panel help system the Teledyne LeCroy T3SA3000 series of spectrum analysers are the perfect instrument for any laboratory.

Features and Benefits

• - 161 dBm/Hz displayed average noise level (Typ)


• - 98 dBc/Hz @ 10kHZ Offset Phase Noise (1 GHz, Typ)


• Total Amplitude Accuracy <0.7Db


• 1Hz Minimum Resolution Bandwidth (RBW)


• All-Digital IF Technology


• Standard Preamplifier


• 10.1-inch colour WVGA (1024 X 600 Display)


• Pre-set and Auto-Tune for quick set up


• File management (support for U-disc and local storage)


• Compact, lightweight and easy to transport

The T3SA3000’s high performing spectrum analysis capability can be enhanced further with additional options. These options (extras) are used to extend the instrument's measurement capacity.

Tracking Generator 177-1299

• Adds tracking generator capabilities to your spectrum analyser to make transmission measurements on backplanes, cables, filters and amplifiers.

• Add EMI Receiver measurements following CISPR 16-1-1

• Adds VSWR, Return Loss, and Reflection Coefficient measurements

• Adds channel power, adjacent channel power ratio, time domain power, and occupied bandwidth and third-order intercept

Applications

Spectrum Analysers are used in a wide range of applications in a multitude of different industries. A spectrum analyser is a vital piece of equipment for any professional where RF testing is needed. Development, verification and validation testing, production, base service, and repair and field installation and service. Some of the most common areas are

• Research laboratories


• Development laboratories


• Repair and maintenance


• Calibration laboratories


• Automatic production testing


• General benchtop use

Why Teledyne LeCroy?

Teledyne LeCroy spectrum analysers have been designed, manufactured and tested to the highest standards. This ensures high reliability and quality. In the unlikely event, you experience any problems all Teledyne LeCroy spectrum analysers are covered by a 3-year manufacturer's warranty.

FAQ’S

Q: Are there any additional accessories available for the T3SA3100 and T3SA3200 Spectrum Analysers?
A: Yes, some additional accessories are available, they are

• 177-1303 is for the T3SA3000-UTL Utility Cable Kit.


• 177-1304 is for the T3SA3000-RLB VSWR Bridge Adaptor Kit.


• 177-1305 is for the T3SA3000-NFP Near Field Probe Set.


• 177-1265 is for the T3SA3000-RFM-Kit. Reflect Measurement Kit includes both software and hardware for the T3SA3000 Series Spectrum Analysers.
