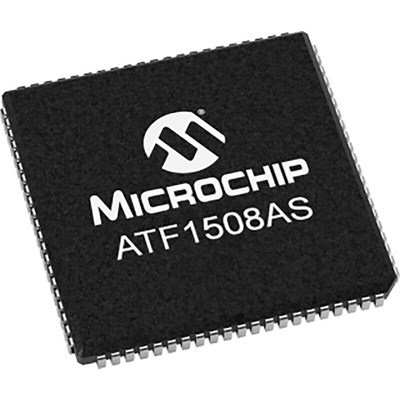

Microchip ATF1508AS-10JU84, CPLD ATF1508AS EEPROM 128 Cells, 84 I/O, 128 Labs, 10ns, ISP, 84-Pin PLCC

Microchip Technology CPLD

The Microchip Technology ATF1508AS family, PLCC package, surface mount, 84-pin, high performance, a high-density complex programmable logic device (CPLD) is an electrically erasable device. It has a voltage rating between 3.3V and 5V. The (CPLD) is designed with 128 logic macrocells and up to 84 inputs. This device easily integrates logic from several TTL, SSI, MSI, LSI and classic PLDs.

Features and Benefits

• 84 bidirectional I/O pins and four dedicated input pins depending on the type of device package selected
• Advanced EE technology
• Advanced power management
• D/T/Latch configurable flip flops
• EEPROM memory type
• Green (Pb/Halide-free) package options
• In-system programmability (ISP) via JTAG
• Integrated power-on reset and brown-out reset
• JTAG boundary scan testing
• Operating frequency is 125MHz
• Operating temperature ranges between -40°C and 85°C
• Pin-to-pin delay is 7.5ns
• Propagation delay is 10ns
• Security fuse
• Three global clock pins

Applications

• Digital designs
• Electronic product designers
