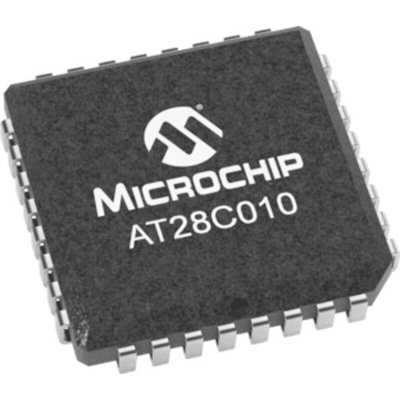

Microchip AT28C010E-12JU, 1Mbit Parallel EEPROM Memory, 120ns 32-Pin PLCC Parallel, Память

The Microchip AT28C010 1Mbit parallel EEPROM offers access times to 120ns with power dissipation of 220mW (440mW military). It operates on voltage range of 4.5V to 5.5V.The deselected, CMOS standby current is less than 200μA (300μA military). It features an internal Error Correction Circuit for extended endurance and improved data retention.

Fast read access time of 120 ns
Internal address and data latches for 128 bytes
Internal control timer
Page write cycle time of 10ms maximum
Low power dissipation
Hardware and software data protection
DATA polling for end of write detection
Standard Endurance of 100,000 cycles
Data retention of 10 years
CMOS and TTL compatible inputs and outputs
Temperature range between -40°C and +85°C
32-Lead, Plastic J-Leaded Chip Carrier (PLCC) package

Datasheet
