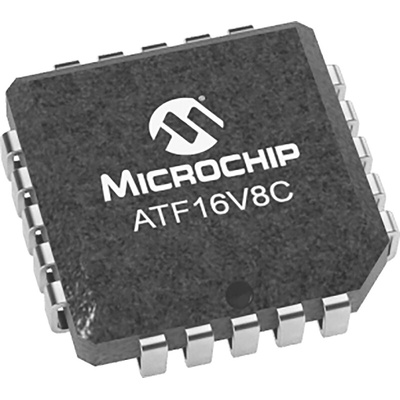

Microchip ATF16V8C-7JU, SPLD Simple Programmable Logic Device ATF16V8C 8 Macro Cells, 18 I/O, ISP, 5ns EECMOS 20-Pin, Микросхема

1771715
Номер производителя: ATF16V8C-7JUПроизводитель: Microchip
Цена за шт. (норма упаковки 5 шт)
971.10 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

A high-performance EECMOS programmable logic device (PLD) based on Atmel's proven electrically erasable flash memory technology. The device supports The device supports speeds down to 5ns and offers a 100 μA pin-controlled power-down mode option. All speed ranges are specified over the full 5V ± 10 percent range for industrial temperature ranges, 5V ± 5% for commercial range 5-volt devices. The device incorporates a superset of the generic architectures, to replace the 16R8 family and most 20-pin combinatorial PLDs.

Features: Industry Standard Architecture
Emulates Many 20-pin PALs®
Low-cost, Easy to Use Software Tools
High Speed Electrically-Erasable Programmable Logic Devices (EE
5ns Maximum Pin-to-pin Delay
Low Power, 100μA Pin Controlled Power-down Mode Option
CMOS and TTL Compatible Inputs and Outputs
Input and I/O Pin Keeper Circuits
Advanced Flash Technology
