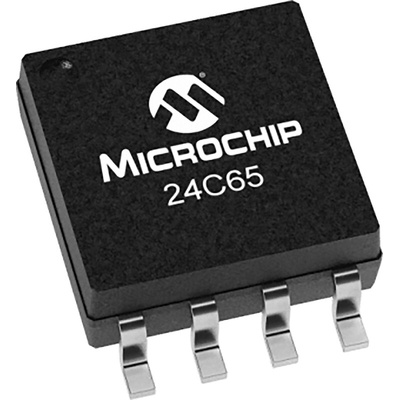

Microchip 24C65/SM, 64kbit Serial EEPROM Memory, 900ns 8-Pin SOIJ Serial-I2C, Память

The Microchip Technology Inc. 24AA65/24LC65/ 24C65 (24XX65)* is a “smart” 8K x 8 Serial Electrically Erasable PROM.

Voltage Operating Range: 1.8V to 6.0V- Peak write current 3 mA at 6.0V- Maximum read current 150 μA at 6.0V- Standby current 1μA
Industry Standard Two-Wire Bus Protocol I2C™Compatible
8-Byte Page, or Byte modes Available
2 ms Typical Write Cycle Time, Byte or Page 64-Byte Input Cache for Fast Write Loads
Up to 8 devices may be connected to the samebus for up to 512K bits total memory
Including 100 kHz (1.8V = Vcc < 4.5V) and 400kHz (4.5V = VCC = 6.0V) Compatibility
Programmable Block Security Options Programmable Endurance Options Schmitt Trigger, Filtered Inputs for NoiseSuppression
Output Slope Control to Eliminate Ground Bounce
Self-Timed Erase and Write Cycles
Power-on/off Data Protection Circuitry
Endurance:- 10,000,000 E/W cycles for a High EnduranceBlock- 1,000,000 E/W cycles for a Standard Endurance Block
Electrostatic Discharge Protection > 4000V
