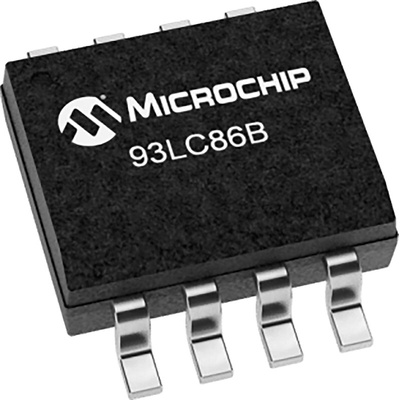

Microchip 93LC86B-I/SN, 16kbit Serial EEPROM Memory 8-Pin SOIC Serial-3 Wire, Память

The Microchip 93LC86B device is a 16Kb Microwire (3-wire) Serial EEPROM with dedicated 16-bit memory organization and a voltage operation range of 2.5 - 5.5V. Also available are the 93LC86A for dedicated 8-bit memory organization and the 93LC86C for hardware selectable word size using the ORG pin.

Addtional Features: Industry Standard Microwire Serial I/O
Up to 3 MHz clock compatibility
1024 x 16-Bit Organization
Automatic Erase All (ERAL) Before Write All (WRAL)
Self-Timed Erase and Write Cycles (5 ms max.)
Low Power Consumption:
Read current 100 uA (Typ), 1 mA (Max)
Write current 500 uA (Typ), 3 mA (Max)
Standby current 1 uA (Max at -40 to 85°C)
Software Write-Protection More than 1 million erase/write cycles
Data retention > 200 years

Grade 1 Temperature Range: -40°C to 125°C

Factory Programming Available Available in SOT-23-6, PDIP-8, SOIC-8, MSOP-8 and TSSOP-8
