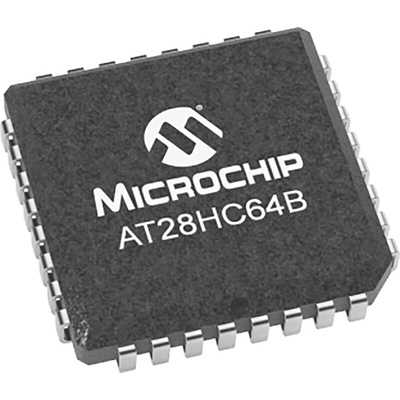

Microchip AT28HC64B-70JU, 64kbit Parallel EEPROM Memory, 70ns 32-Pin PLCC Parallel, Память

The Microchip AT28HC64B is a high-performance 64Kbit Parallel EEPROM offering access times to 55ns with power dissipation of 220mW. Deselected, CMOS standby current is less than 100μA. Accessed like static RAM for the read or write cycle without external components, it contains a 64-byte page register to allow writing of up to 64 bytes simultaneously. Optional Software Data Protection mechanism guards against inadvertent writes, and an extra 64 bytes of EEPROM enables device identification or tracking.

Additional Features:
8 Kbits x 8 (64 Kbit)
5 V ±10% Supply
Parallel Interface
70ns access time
Self-Timed Erase and Write Cycles (10 ms max)
Page Write and Byte Write

Datasheet
