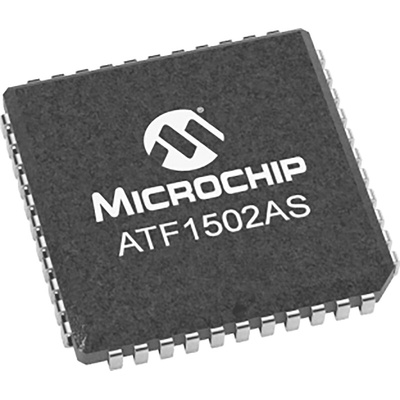

The Atmel ATF1502AS(L) is a high-performance, high-density Complex Programmable Logic Device (CPLD) which utilizes the Atmel proven electrically-erasable technology.
High-density, High-performance, Electrically-erasable Complex ProgrammLogic Device 32 Macrocells
5 Product Terms per Macrocell, Expandable up to 40 per Macrocell 44 Pins
7.5ns Maximum Pin-to-pin DelayRegistered Operation up to 125MHz
Enhanced Routing Resources
In-System Programmability (ISP) via JTAG
Flexible Logic Macrocell
D/T Latch Configurable Flip-flops
Global and Individual Register Control Signals
Global and Individual Output Enable
Programmable Output Slew Rate
Programmable Output Open Collector Option
Maximum Logic Utilization by Burying a Register with a COM Output
Advanced Power Management Features
Automatic 10μA Standby for “L” Version
Pin-controlled 1mA Standby Mode
Programmable Pin-keeper Inputs and I/Os
Reduced-power Feature per Macrocell
Available in Commercial and Industrial Temperature Ranges
