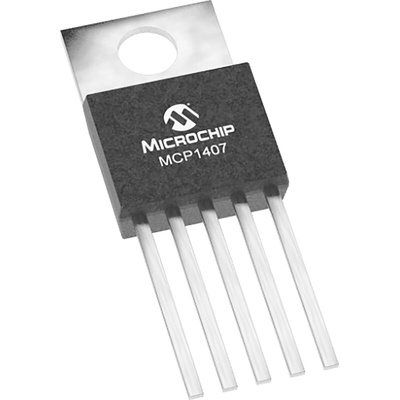

Microchip MCP1407-E/AT, MOSFET 1, 6 A, 18V 5-Pin, TO-220

The MCP1406/07 devices are a family of buffers/MOSFET drivers that feature a single-output with 6A peak drive current capability, low shoot-through current, matched rise/fall times and propagation delay times. These devices are pin-compatible and are improved versions of the TC4420/TC4429 MOSFET drivers. The MCP1406/07 MOSFET drivers can easily charge and discharge 2500 pF gate capacitance in under 20 ns, provide low enough impedances (in both the ON and OFF states) to ensure that intended state of the MOSFETs will not be affected, even by large transients.

Additional Features:
Low Shoot-Through/Cross-Conduction Current in Output Stage
Wide Input Voltage Supply Voltage Operating Range
4.5V to 18V
Matched Rise/Fall Times
Pin compatible with TC4420/TC4429 devices
