Microchip CL6N5-G Constant Current LED Driver, 90 V dc 120mA 3-Pin TO-220, Драйвер

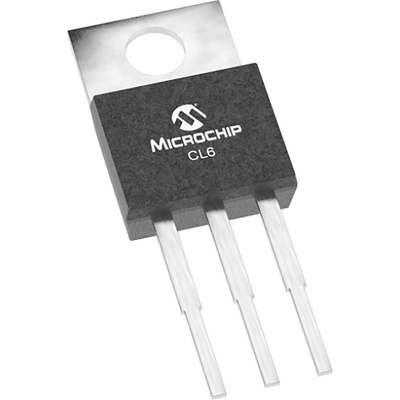

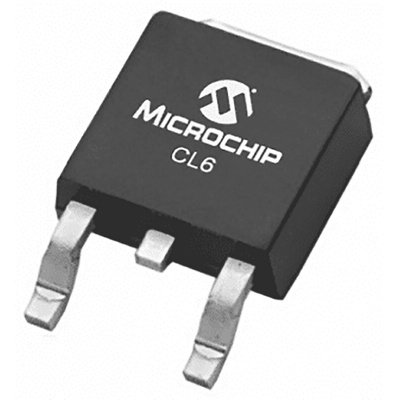

The CL6 is a fixed, linear current regulator designed for driving high brightness LEDs at 100mA from nominal 12V, 24V, or 48V supplies. With a maximum rating of 90V, it is able to withstand transients without the need for additional transient protection circuitry. The CL6 is offered in both TO-252 (D-PAK) and TO-220 packages. The tab on the TO-220 is ground, allowing heatsinking directly to a chassis without the need for electrically insulating spacers. Overtemperature protection shuts off the LED current when the die temperature rises above 135°C (nominal). Full LED current resumes when the die temperature falls below 105°C (nominal).

Additional Features:
100mA ±5% constant current drive
Built-in reverse polarity protection
Dimmable via PWM supply
Overtemperature protection
Tab ground allows direct heatsinking to chassis
90V max rating for transient immunity

Datasheet
