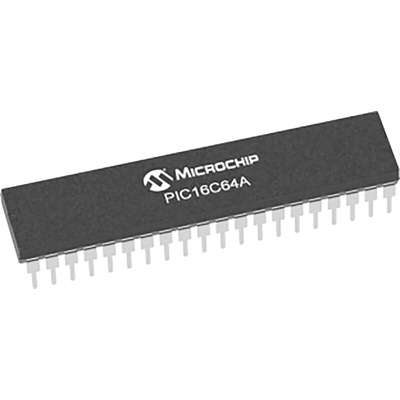

Microchip PIC16C64A-20/P, 8bit PIC Microcontroller, PIC16C, 20MHz, 3.5 kB Flash, 40-Pin PDIP, Микроконтроллер

The Microchip PIC16C64 8-Bit CMOS microcontroller has an advanced RISC architecture. It operates on 2.5V to 6V voltage range. This microcontroller has 128 bytes of RAM and 33 I/O pins. It features three timer/counters, one Capture/Compare/PWM module and one serial port. The Synchronous Serial Port can be configured as either a 3 wire Serial Peripheral Interface (SPI) or the two-wire Inter-Integrated Circuit (I2C) bus. An 8-bit Parallel Slave Port is also provided.

Eight level deep hardware stack
Direct, indirect, and relative addressing modes
Power-on Reset (POR)
Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
Programmable code-protection
Power saving SLEEP mode
Capture/Compare/PWM (CCP) module(s)
Capture is 16-bit, max resolution is 12.5 ns, Compare is 16-bit, max resolution is 200 ns, PWM max resolution is 10-bit.
Synchronous Serial Port (SSP) with SPI and I2C
Universal Synchronous Asynchronous Receiver Transmitter (USART/SCI)
Parallel Slave Port (PSP) 8-bits wide, with external RD, WR and CS controls
Brown-out detection circuitry for Brown-out Reset (BOR)
Low-power consumption
Temperature range between 0°C and +70°C
PDIP package
