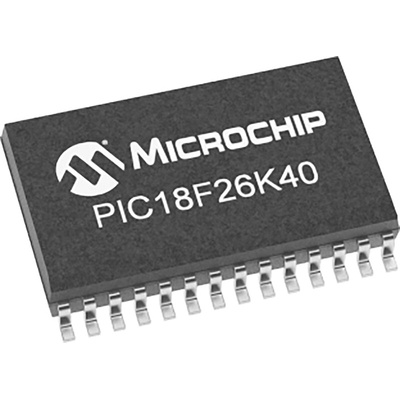

Microchip PIC18F26K40-I/SS, 8bit PIC Microcontroller, PIC18F, 64MHz, 64 kB Flash, 28-Pin SSOP, Микроконтроллер

Microchip Technology Microcontroller

The Microchip Technology PIC18F26K40-I/SS family type, SSOP package, surface mount, 28-pin C compiler RISC-based 8-bit microcontroller. It has a maximum voltage rating of 5.5V. This operates at a maximum speed of 64MHz and features 64kb ISP flash program memory, 3728bytes of SRAM and 1024bytes of EEPROM. It has core independent peripherals (CIPs) and communication along with extreme low-power (XLP) technology for a wide range of general-purpose and low-power applications.

Features and Benefits

• 2 x comparators
• 24x10 bit ADC channels
• 5-bit Digital-to-Analogue (DAC)
• Complementary waveform generator (CWG) and numerically controlled oscillator (NCO)
• Direct, indirect and relative addressing mode
• Four 16-bit timers
• Four capture, compare, PWM (CCP)
• Hardware capacitive voltage divider (CVD) for mTouch buttons/sliders
• Hardware limit timer (HLT)
• IDLE and DOZE low power modes
• In-circuit serial programming
• Operating temperature ranges between -40°C and 85°C
• Peripheral module disable (PMD)
• Peripheral pin select (PPS)
• PIC 18 core with 83 instructions, 31 stack levels
• Programmable 2-level interrupt priority
• Three 8-bit timers with hardware limit timer
• Two 10-bit PWMs
• Uses peripherals such as two EUART with LIN support, two-SPI, two-I2C for digital communication
• Window watchdog timer (WWDT)
• Zero cross detect (ZCD)

Applications

• Embed designs
• Household appliances
• Industrial
