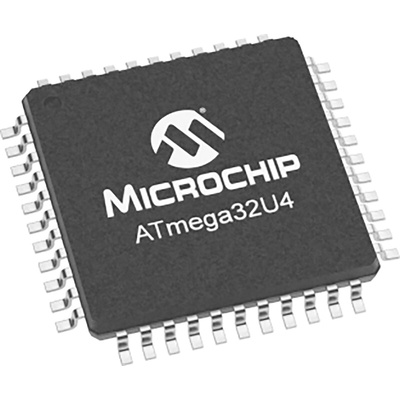

Microchip ATMEGA32U4-AUR, 8bit AVR Microcontroller, ATmega, 16MHz, 32 kB Flash, 44-Pin TQFP, Микроконтроллер

Microchip Technology Microcontroller

The Microchip Technology ATMEGA family type, TQFP package, surface mount, 44-pin AVR RISC-based processor 8-bit microcontroller. It has a maximum voltage rating of 5.5 V. The microcontroller operates at a maximum speed of 16MHz and features 32kb ISP flash program memory, 2.5kb of internal SRAM and 1kb of EEPROM. It has 26 programmable I/O lines. It has a 12-channel 10-bit ADC converter, programmable watchdog timer with an internal oscillator. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1MIPS per MHz, balancing power consumption and processing speed.

Features and Benefits

• 14 PWM channels
• CPU Reset possible on USB bus reset detection
• Has 48MHz frequency from PLL for full-speed bus operation
• Operating temperature ranges between -40°C and 85°C
• Power-on reset and programmable brown-out detection
• Six programmable endpoints with in or out directions and with bulk, interrupt or isochronous transfers
• Supports data transfer rates up to 12Mbit/s and 1.5Mbit/s
• Suspend/Resume interrupts
• Two-wire UART serial communication mode for general-purpose
• USB 2.0 full-speed/low speed device module with interrupt on transfer completion
• USB bus connection/disconnection on microcontroller request

Applications

• Embedded systems
• LCD monitors and TVs
• Mobile PC docking
• PC motherboards
• Printers and scanners
