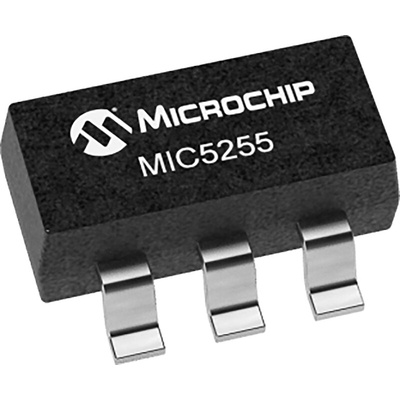

Microchip MIC5255-3.3YM5-TR, 1 Low Dropout Voltage, Voltage Regulator 150mA, 3.3 V 5-Pin, SOT-23, Регулятор напряжения

The MIC5255 is an efficient, precise CMOS voltage regulator optimized for ultra-low noise applications. It offers 1% initial accuracy, extremely low dropout voltage (135mV at 150mA) and low ground current (typically 90μA). The MIC5255 provides a very-low noise output, ideal for RF applications where a clean voltage source is required. A noise bypass pin is also available for further reduction of output noise.Designed specifically for handheld and battery-powered devices, the MIC5255 provides a TTL logic-compatible enable pin.

Input voltage range: 2.7V to 6.0V
Thin SOT package: 1mm height SOT-23-5
Ultra-low output noise: 30μV(rms)
Stability with ceramic output capacitors
Ultra-low dropout: 135mV at 150mA
High output accuracy:
1.0% initial accuracy
2.0% over temperature
Low quiescent current: 90μA
Tight load and line regulation
TTL logic-controlled enable input
Zero off-mode current
Thermal shutdown and current limit protection

Datasheet
