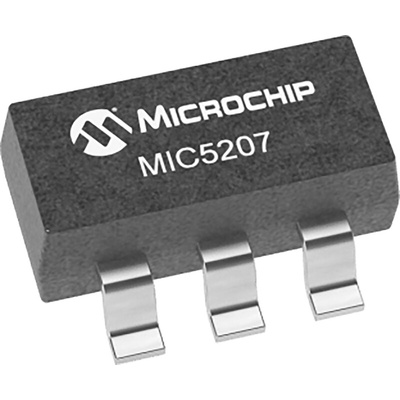

Microchip MIC5207YM5-TR, 1 Low Dropout Voltage, Voltage Regulator 150mA 5-Pin, SOT-23, Регулятор напряжения

The MIC5207 is an efficient linear voltage regulator with ultra-low-noise output, very low dropout voltage (typically 17mV at light loads and 165mV at 150mA), and very low ground current (720μA at 100mA output). The MIC5207 offers better than 3% initial accuracy.

Designed especially for hand-held, battery-powered devices, the MIC5207 includes a CMOS or TTL compatible enable/shutdown control input. When in shutdown, power consumption drops nearly to zero. Key MIC5207 features include a reference bypass pin to improve its already low-noise performance, reversed-battery protection, current limiting, and over temperature shutdown.

Output voltage range: 1.8V - 15V
Ultra-low noise output
High output voltage accuracy
Guaranteed 180mA output
Low quiescent current
Low dropout voltage
Extremely tight load and line regulation
Very low temperature coefficient
Current and thermal limiting
Reversed-battery protection
"Zero" off-mode current state
Logic-controlled electronic enable

Datasheet
