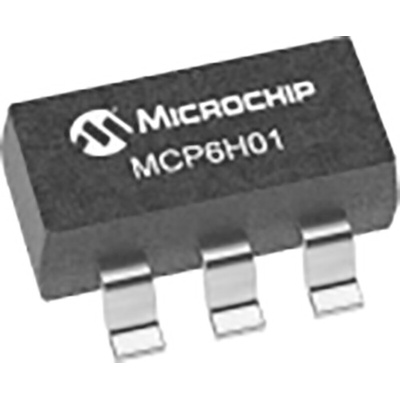

The MCP6H01 operational amplifier (op amp) has a wide supply voltage range of 3.5V to 16V and rail-to-rail output operation. This device is unity gain stable and has a gain bandwidth product of 1.2 MHz (typical). This device operates with a single-supply voltage as high as 16V, while only drawing 135 μA/amplifier (typical) of quiescent current. The MCP6H01 is fully specified in extended temperature range from -40°C to +125°C and is available in SC70, 5L-SOT23, 8L-SOIC and 8L- 2x3 TDFN
Input Offset Voltage: ±3.5 mV (max)
Quiescent Current: 135 μA (typical)
Common Mode Rejection Ratio: 100 dB (typical)
Power Supply Rejection Ratio: 102 dB (typical)
Rail-to-Rail Output
Supply Voltage Range:
Single-Supply Operation: 3.5V to 16V
Dual-Supply Operation: ±1.75V to ±8V
Gain Bandwidth Product: 1.2 MHz (typical)
Slew Rate: 0.8V/μs (typical)
Unity Gain Stable
Extended Temperature Range: -40°C to +125°C
