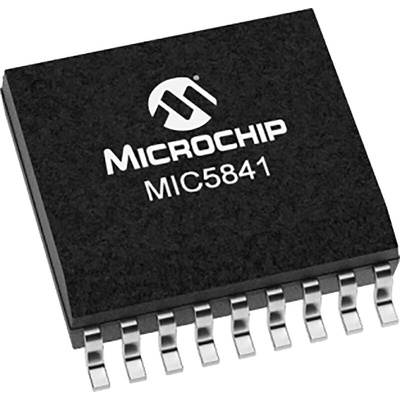

Microchip MIC5841YWM-TR Octal-Bit 8 Bit Latch, CMOS, 18-Pin SOIC, Триггер-защелка

Using BiCMOS technology, the MIC5841/5842 integrated circuits were fabricated to be used in a wide variety of peripheral power driver applications. The devices each have an eight-bit CMOS shift register, CMOS control circuitry, eight CMOS data latches, and eight bipolar current-sink Darlington output drivers. These two devices differ only in maximum voltage ratings. The MIC5842 offers premium performance with a minimum output breakdown voltage rating of 80V (50V sustaining).

3.3 MHz Minimum Data-Input Rate
CMOS, PMOS, NMOS, TTL Compatible
Internal Pull-Up/Pull-Down Resistors
Low-Power CMOS Logic and Latches
High-Voltage Current-Sink Outputs
Output Transient-Protection Diodes
Single or Split Supply Operation
