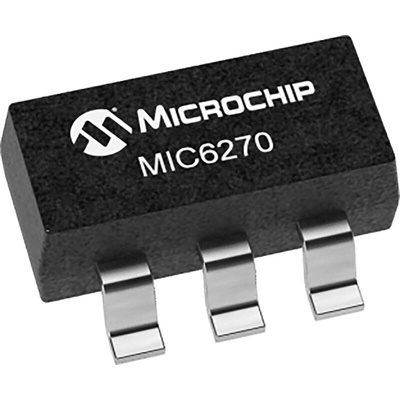

MIC6270YM5-TR Microchip, Comparator, Open Collector O/P, 300ns 5-Pin SOT-23, Компаратор

The MIC6270 is a precision voltage comparator with an offset voltage specification of 5mV maximum. The MIC6270 is designed to operate from a single 2V to 36V power supply. Operation from split power supplies is also possible. Its low supply current drain is independent of the magnitude of the supply voltage. This comparator also features an input common-mode voltage range that includes ground.

2V to 36V supply
300μA supply current independent of supply
25nA input bias current
±5nA input offset current
±3mV input offset voltage
Input common-mode voltage range includes ground
Differential input voltage range equal to the power supply voltage
250mV at 4mA output saturation voltage
Output compatible with TTL, DTL, ECL, MOS, and CMOS logic

Datasheet
