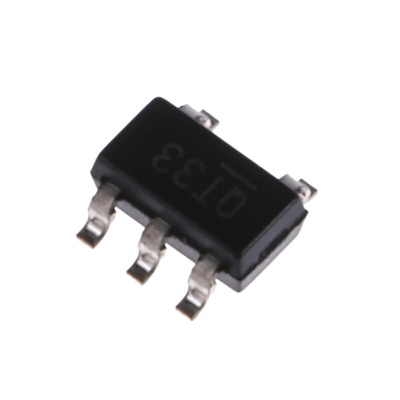

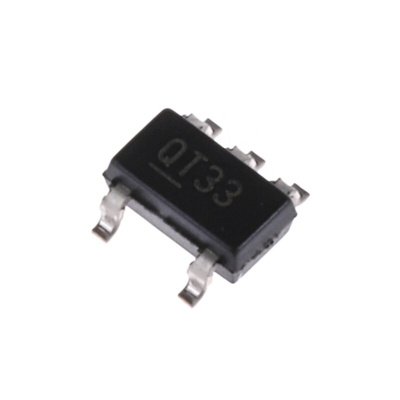

Microchip Technology LDO Regulator
The Microchip Technology MIC5225 series is a 150mA highly accurate LDO regulator with high input voltage and ultra-low ground current. This combination of high input voltage and low ground current makes it ideal for a wide variety of applications including USB and portable electronics applications, using 1 cell, 2 cell, or 3 cell Li-Ion battery inputs. It is stable with either a ceramic or tantalum output capacitor.
Features and Benefits
• Excellent line and load regulation specifications
• High output accuracy of ±2.0% over temperature
• Input voltage range is 2.3V to 16V
• Low dropout voltage of 310mV at 150mA
• Maximum output current is 150mA
• Operating temperature ranges between -40°C and 125°C
• Reverse battery protection
• Reverse leakage protection
• Thermal shutdown and current limit protection
• Zero off mode current
Applications
• Automotive electronics
• Battery powered equipment
• Cellular phones
• Consumer/personal electronics
• High efficiency linear power supplies
