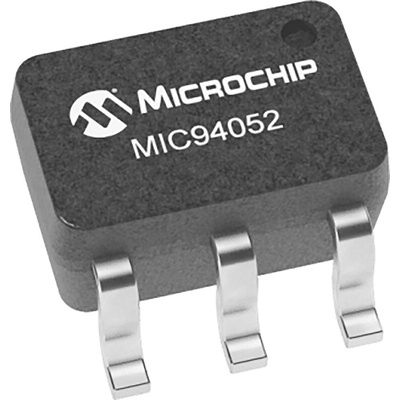

The MIC94052/94053 are low on-resistance, 84mW(max) P-channel MOSFETs. They are housed in a Teeny™ SC-70-6 package.Designed for high-side switch applications where space is critical, the MIC94052/3 exhibit a typical on-resistance of 70mΩ at 4.5V gate-to-source voltage. The devices operate down to 1.8V gate-to-source voltage. Their operating voltage range makes the MIC94052/3 ideal for Li Ion applications as well as other sub-5V load switch applications.The MIC94053 is an option that includes an internal gate pull-up resistor. The pull-up resistor ensures that the P-channel MOSFET is OFF until actively pulled down. Integrating the pull-up resistor saves valuable board space and reduces component placement cost.The MIC94052/3 have a junction temperature range of -40°C to +150°C
1.8V to 5.5V input voltage range
Low on-resistance P-channel MOSFET:
70mΩ at VGS = 4.5V (typ)
2A continuous current
VGS pull-up resistor (MIC94053)
Teeny™ SC-70-6 package
-40°C to +150°C junction temperature range
Datasheet
