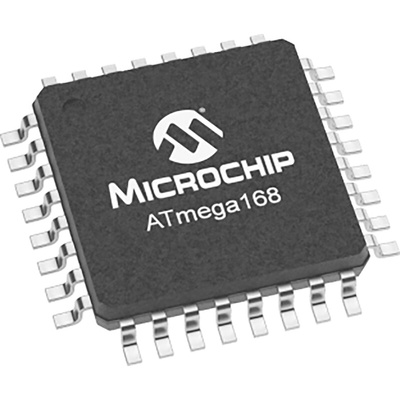

Microchip ATMEGA168-20AU, 8bit AVR Microcontroller, ATmega, 20MHz, 16 kB Flash, 32-Pin TQFP, Микроконтроллер

Microchip Technology Microcontroller

The Microchip technology ATMEGA family type, TQFP package, surface mount, 32-pin CMOS 8-bit microcontroller has a maximum voltage rating of 5.5 V. This microcontroller operates at a maximum speed of 20MHz and features 16kb of flash program memory, 1kb of internal SRAM and 512 bytes EEPROM. It has 23 programmable I/O lines. The microcontroller has a real-time counter, four flexible timer/counters- compare modes and PWM, two USARTs and more. It also has a byte-oriented two-wire serial interface with optional differential input stage with programmable gain, programmable watchdog timer with an internal oscillator.

Features and Benefits

• 6 PWM channels
• 8-channel, 10-bit ADC in TQFP package
• Dual 8-bit timers/counters with separate Prescaler and compare mode
• External and internal interrupt sources
• Fully static operation
• High endurance non-volatile memory segments
• High-performance 8-bit advanced RISC architecture
• On-chip 2-cycle multiplier
• Operating temperature ranges between -40°C and 85°C
• Single 16-bit timer/counter with separate Prescaler, compare mode and capture mode
• Sleep modes- Idle, ADC noise reduction, power-save, power-down, standby and extended standby
• Two-wire UART serial communication mode for general-purpose
• Write/erase cycles- 10,000 flash/100,000 EEPROM

Applications

• Embedded systems
• LCD monitors and TVs
• Mobile PC docking
• PC motherboards
• Portable hub boxes
• Printers and scanners
