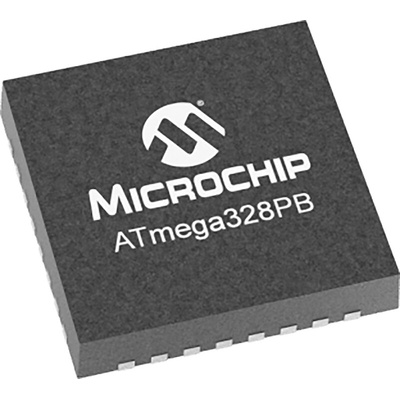

Microchip ATMEGA328PB-MU, 8bit AVR Microcontroller, ATmega, 20MHz, 32 kB Flash, 32-Pin VQFN, Микроконтроллер

Microchip Technology Microcontroller

The Microchip Technology ATMEGA family type, VQFN package, surface mount, 32-pin AVR RISC-based processor with a Pico power technology 8-bit microcontroller. It has a maximum voltage rating of 5.5V. This microcontroller operates at a maximum speed of 20MHz and features 32kb ISP flash program memory, 2kb of internal SRAM and 1kb of EEPROM. It has 27 programmable general-purpose I/O lines. It has an 8-channel 10-bit ADC in TQFP and QFN/MLF package, programmable watchdog timer with an internal oscillator and five software selectable power saving modes. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1MIPS per MHz, balancing power consumption and processing speed.

Features and Benefits

• 10 PWM channels
• 131 powerful instructions - Most single-clock cycle execution
• 32x8 general-purpose register
• External and internal interrupt sources
• Fully static operation
• On-chip 2-cycle multiplier
• Operating temperature ranges between -40°C and 105°C
• Peripheral touch controller (PTC)
• Power-on reset and programmable brown-out detection
• Six sleep modes- Idle, ADC noise reduction, power-save, power-down, standby and extended standby
• Three 16-bit timers/counters with separate pre scaler, compare mode and capture mode
• Two 8-bit timers/counters with separate pre scaler and compare mode
• Two USART with fractional baud rate generator, auto baud and start-of-frame detection
• Two-wire UART serial communication mode for general-purpose
• Write/Erase cycles- 10,000 flash/100,000 EEPROM

Applications

• Embedded systems
• LCD monitors and TVs
• Mobile PC docking
• PC motherboards
• Printers and scanners
