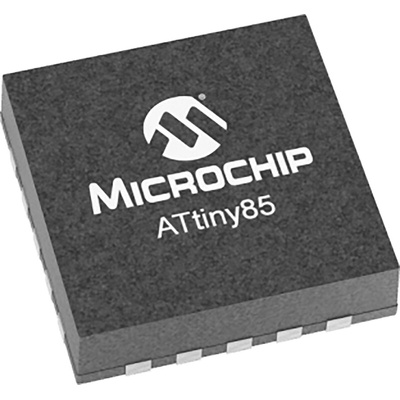

Microchip ATTINY85-20MU, 8bit AVR Microcontroller, ATtiny85, 20MHz, 8 kB Flash, 8-Pin VQFN, Микроконтроллер

Microchip Technology Microcontroller

The Microchip Technology ATTINY1616 family type, QFN package, surface mount 8-pin and AVR RISC-based 8-bit microcontroller. It has a voltage rating of 5.5V. This microcontroller operates at a maximum speed of 20MHz and features 8kb ISP flash program memory, 521bytes of internal SRAM and 512bytes of EEPROM. By executing powerful instructions in a single clock cycle, achieves throughputs approaching 1MIPS per MHz allowing the system to optimize power consumption versus processing speed.

Features and Benefits

• 4-channel 10-bit A/D converter
• 5 PWM channels
• 6 programmable I/O lines
• Debug wire for on-chip debugging
• Fully static operation
• On-chip 2-cycle multiplier
• One 8-bit high speed timer/counter with separate pre scaler
• One 8-bit timer/counter with pre scaler and two PWM channel
• Operation temperature ranges between -40°C and 85°C
• Power-on reset and programmable brown-out detection
• Three power down modes- low power idle, ADC noise reduction and power-down modes
• Window watchdog timer (WDT) with separate on-chip oscillator
• Write/erase cycles- 10,000 flash/100,000 EEPROM

Applications

• Consumer appliances
• Home automation
• Industrial
