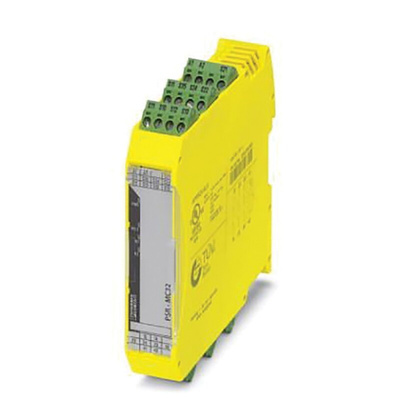

2700525, Phoenix Contact Dual-Channel Emergency Stop Safety Relay, 24 → 230V ac/dc, 3 Safety Contacts, Реле безопасности

Phoenix Contact Safety Relay,

Manage safety sensors and switches installed on your industrial equipment with this safety relay from Phoenix Contact. It has a force-guided contact mechanism that ensures its NO and NC contacts don't close simultaneously, reducing the risk of fire outbreaks. The contacts are made of highly conductive silver-tin oxide that resists corrosion, so you can be assured of reliable performance, even in harsh conditions.
The relay's durable PA housing provides protection from impact and abrasion. The case is yellow, so it's easy to identify as a safety device in a colour-coded setup. Thanks to push-in terminals, you won't need tools to link wires to this unit, saving time and effort. It comes with an integrated suppressor diode to prevent damage from voltage spikes for extra safety. You'll find relays like this one commonly used in the process and packaging industry.

Features & Benefits

• LED indicators for easy status monitoring
• IP20 rating indicates that it's protected from objects larger than 12mm in size
• Mechanical life of 10,000,000 cycles for reliable long-term performance
• CE certified to conform with European health, safety and environmental standards

Standards

DIN EN 50178, EN 60947-5-1

Datasheet 2700525

Instruction Sheet - 2700525

Line Drawing - 2700525

Application Note - Central Data Source For All Safety Characteristics
