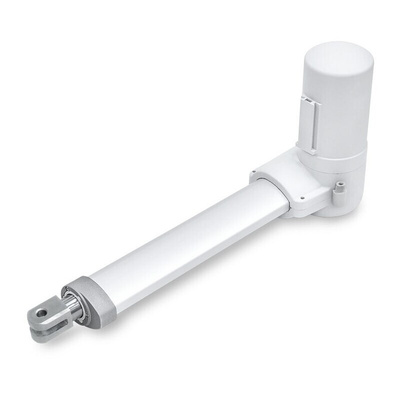

RS PRO Micro Linear Actuator, 300mm, 24V dc, 6000N, 8.1mm/s

RS Pro Electric Linear Actuator

Our RS Pro linear actuator is quiet and powerful with a thrust of 8000N. It's handy for applications where installation space is limited, such as a window opener or an adjustable car driver.

Features & Benefits

• Input voltage 24 V DC
• Clevis type of metal connectors, rear connector's pivot angle can be chosen in every 30 degrees
• IP protection of IPX4, which means that this product offers protection from a splash of water in any direction for at least 5 minutes
• Steel extension tube
• Has a noise level of ≦ 5 0dB
• Preset limit switches
• The ambient operating temperature is +5°C ∼ +40°C
• Light gray in colour
• MD82

How do electric linear actuators work?

A linear actuator is a device that moves between two points, this is done in a linear (straight line) motion. An electric linear actuator (ELA) works by converting energy produced by an electric motor into torque, which then moves the mechanism. The control system of a linear actuator can be controlled through a variety of operations but in this case, it is electrically.

Please Note:

• These actuators should be used in combination with the fitting controller and handset only.


• For details kindly see the datasheet for Electric Actuator cross reference to Controller and Handset

RS Pro Datasheet

RS PRO Electric Actuator Cross Ref to Controller and Handset
