NFS110CJ, Artesyn Embedded Technologies Power Supply Cover, Cover Kit for use with NFS110 PSU

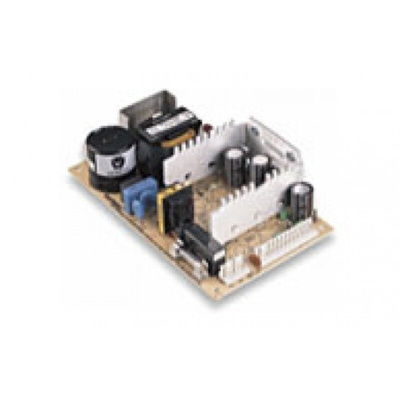

The NFS110 series is a 110 W universal input ac-dc power supply on a 7 x 4.25 inch card. The NFS110 series has four single and three quad output models and has proven itself to be highly reliable and versatile product for a wide range of communication and industrial applications, with a very high peak current capability on each output for drive and motor applications. The NFS110 provides 80 W of output power with free air convection cooling which can be boosted to 110 W with 20 CFM of air. Standard features include overvoltage and short circuit protection. The series, with full international safety approval and the CE mark, meets conducted emissions EN55022 level B. The NFS110 series is designed for use in low power data networking, computer, telecom and industrial applications such as servers, thermal printers, storage devices, vending machines and POS equipment.

7.0 x 4.25 x 1.8 inch package
Overvoltage and short circuit protection
110 W with 20 CFM
Adjustable outputs
EN55022, EN55011 conducted emissions level B
UL, VDE and CSA safety approvals
CE mark
Available
2 year warranty
Safety
VDE0805/EN60950/
IEC950/IEC1010
File No. 10401-3336-0213
Licence No. 4001467 7
UL1950 File No. E132002
CSA C22.2 No. 950
File No. LR41062C

Datasheet
