RS PRO IPM245F Insulation Tester, 1000V Max, 40MΩ Max, CAT III 1000V, Измеритель сопротивления изоляции

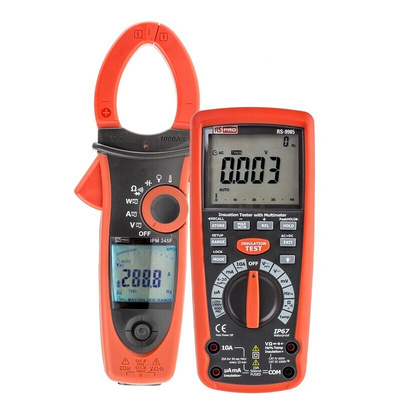

RS PRO Insulation Tester & Power Clamp Meter Two Piece Kit

This exclusive two piece kit from our trusted and reliable own brand RS PRO features a versatile insulation tester with multimeter and type-K probe, as well as a high-performance clamp meter, providing an excellent kit for carrying our electrical tests with great accuracy and precision.

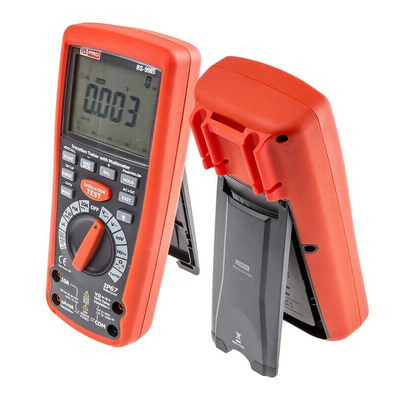

161-1630 - RS PRO Insulation Tester with Multimeter & Type-K Probe

Insulation testers (or megger tests) are used to ensure the insulation of wiring is safe, or undamaged after electrical work has been carried out. Testers or megohmmeters are vital in preventing tripped fuses, electrical equipment and instrument breakdown, risk of electric shock or fires.

The RS PRO insulation tester with multimeter is a highly versatile and reliable kit with multiple features such as auto AC/DC voltage detection, wide resistance capability, true RMS and more. This insulation meter is compact, very robust and features a convenient stand and holders for your remote test probes. Our rugged insulation tester is also equipped with a large clear LCD display, providing a highly user friendly experience. The RS PRO insulation tester with multimeter also includes k-type probes, ensuring you have everything at hand to get the job done.

Features and benefits

• Large LCD display with backlighting to easily see all the relevant information clearly
• IP67 Rating so it’s a dust tight seal with waterproofing
• Auto power off after idle timer has been surpassed to save battery power. This option can be disabled
• Insulation testing: Maximum of 1000V
• Resistance capability from 0.001Ω up to 4000MΩ
• Provided with high quality test equipment so you can use it out of the box
• Auto AC/DC voltage detection
• Ergonomic tilt stand, nail hook and convenient storage for testing probes
• CAT III & CAT IV safety ratings
• K-Type thermocouple reading (Supplied with adaptor)
• True RMS to measure both sinusoidal and non-sinusoidal AC waves

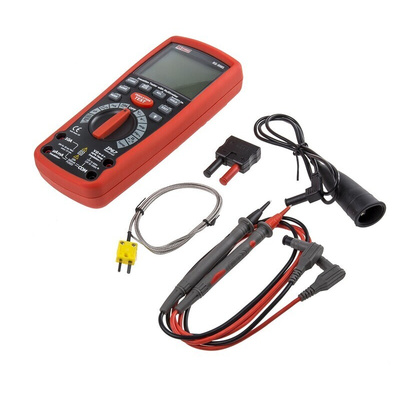

What is included

Test-lead set, 6 x 1.5V AAA batteries, type k temperature probe.

What is the minimum/maximum test voltage?

This device offers a minimum test voltage of 125V and a maximum of 1000V.

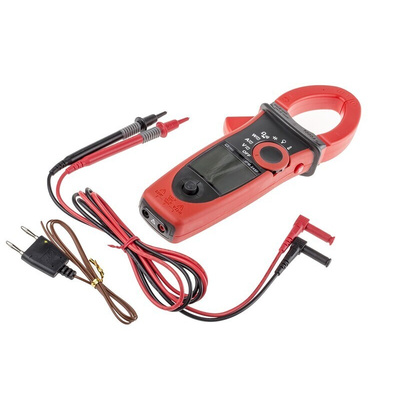

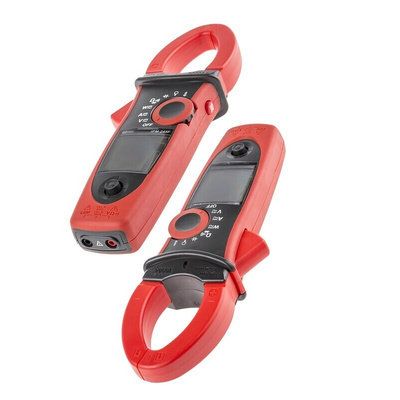

124-1963 - RS PRO Power Clamp meter

Clamp meters are an electrical test tool used to measure electrical characteristics such as AC current, AC and DC voltage, resistance, continuity and more. Clamp meters are often a combination of a basic digital multimeter and a current sensor, offering a versatile electrical measurement tool.

This high-performance clamp meter from RS PRO features a 10000 count digital display and true RMS reading on AC and AC/DC mode. The RS PRO clamp meter boasts a variety of excellent features ensuring greater results with precision.

Features and benefits

• 10000 Count digital display
• Safety Category: CAT III 1000 V, CAT IV 600 V
• Active Backlit, Large-scale display
• VoltSense (Non Contact Voltage)
• Analogue Bar graph
• True RMS reading on AC and AC+DC mode
• Torch lightening when clamping
• Auto AC-DC 1000 Amps capability and selection
• AC Current via Flexible Current Probe
• Auto AC-DC 1000 V capability and selection
• Auto Ohms/Continuity/Diode selection
• 100 K Ω Resistance capability
• Continuity Beeper
• Frequency Counter
• Power and Power factor measurement
• Total Harmonics distortion and Harmonics 1 to 25
• Capacitance capability
• °C / °F Temperature Function
• Inrush Current
• DCA Auto-Zeroing Key
• Peak Hold
• MIN/MAX HOLD
• Smart Data Hold
• Phase rotation indication
• Low pass Filter
• Auto Power Off

What is supplied?

Clamp meter, battery (installed), carrying case, temperature Probe and instruction manual.

Standards

IEC 61010-1: CAT IV 600 V, CAT III 1000 V.

Instruction Manual for 161-1630

RS PRO Datasheet
