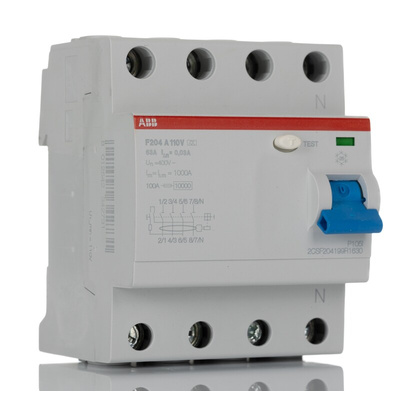

2CSF204199R1630 F204 A-63/0,03 110V, ABB F200 RCCB, 63A, 4 Pole, 30mA, Type A, 110V ac, Автоматический выключатель

ABB RCCB, Instantaneous Trip, DIN Rail Mounting - F200 Series - 2CSF204199R1630 F204 A-63/0,03 110V

Take troublesome residual current out of the equation with this RCCB from ABB. It checks if there's a difference in current values between neutral and live wires, so quickly detects and cuts a circuit when a fault occurs. This helps to protect users against shocks and also reduces the risk of electrical fires. Thanks to type-A tripping characteristics, you can count on the device to immediately step in if an earth fault occurs. Shock and vibration have minimal impact on its reliability and performance, making this a smart choice for harsh industrial environments.

• Wide operating temperature range between -25°C and +55°C for use in demanding settings
• Light weight of 350g, so puts minimal strain on its mounting surface
• Compact dimensions of 69 (L) x 70 (W) x 85mm (H) to maximise board-packing efficiency
• IP2X-rated enclosure stops fingers from touching hazardous parts and protects against objects larger than 12mm

Applications

• Residential buildings
• Public infrastructure
• Manufacturing plants

The RCCBs F200 series assures protection against the effects of sinusoidal alternating and direct pulsating earth fault currents, protection, against indirects contacts and additional protection against direct (with sensitivity = 30 mA) contacts. Applications: residential, commercial, industrial. This particular series has the minimum operating voltage of test button 0f 110V and it is suitable for application at 230V.

Where can I mount this RCCB?

The breaker is designed for DIN rail mounting. You simply snap it on for quick and hassle-free installation.

Datasheet

Catalogue -Residual Current Devices

Instruction Sheet - 2CSF204199R1630 F204 A-63/0,03 110V
