RS PRO RS-820 IR Thermometer, Max Temperature +380°C

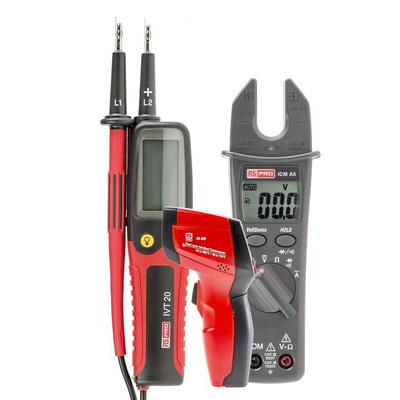

RS PRO RS820 Infrared Thermometer, IVT20 Voltage Tester and ICMA5 Clamp Meter

Exclusive 3-piece kit from our RS PRO range offering the following instruments:

Kit includes:

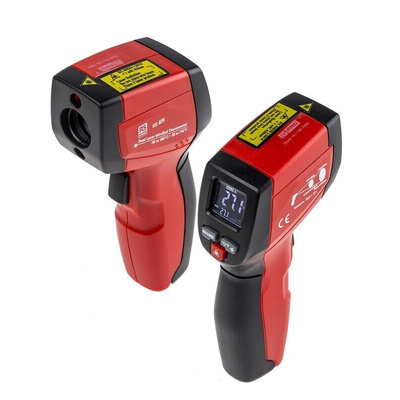

136-7890 – RS PRO RS820 IR Thermometer

This RS PRO IR Thermometer is a compact, accurate and easy to use unit. With a spot ratio of 12:1, you can take accurate readings from safer distances. The thermometer provides non-contact temperature measurements, targeting objects are easy with the bright laser beam. The device also features an easy to read backlit display which is ideal for taking measurements in areas with low light levels.

Key Features and Benefits:
• Absolute Minimum Temperature Measurement: -50°C
• Absolute Maximum Temperature Measurement: +380 °C
• 12:1 distance-to-spot ratio
• Easy-to-use
• User selectable °C or °F
• Rapid detection 150ms
• Automatic Data Hold
• Auto Power Off (saves battery)
• Fixed emissivity of 0.95

124-1962 – RS PRO IVT20 Voltage Tester

This RS PRO Voltage Tester measures AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency (electrical & electronic), Duty Cycle, Diode Test, Insulation Test, and Continuity plus Thermocouple Temperature. It can store and recall data and features a waterproof, rugged design for heavy duty use, regardless of what elements the user is working in.

Key Features and Benefits:
• Safety Category: CAT III 750 V, CAT IV 600 V
• Maximum Voltage: 750V ac/dc
• IP Rating: IP65
• 2 pole test with 2000 Count digital display
• Auto Sensing of ACV, DCV, Ω, Continuity and Diode
• Integrated single pole test for phase detection
• Rotary field indication
• Dual display for ACV measuring with frequency
• 1 K Ohms Resistance range
• 1 H Hz Frequency counter
• Ultra-bright white LED torch
• Screw on tip adapters to select 2 mm or 4 mm diameter probe tips
• Compact design with convenient battery door
• P2X test probes (retractable probe tip shroud)
• Power requirement: 2 x 1.5 V IEC LR03 or AAA size

123-3232 – RS PRO ICMA5 Clamp Meter

The RS PRO ICMA5 Slim line clamp meter us used to check voltage, resistance, continuity and current. The integral non-contact ac voltage detector enables fast identification of the presence of mains voltages, while the open jaw current clamp enables safe, non-intrusive measurement of ac currents up to 200A.

Key Features and Benefits:
• Safety Category: CAT III 1000 V, CAT IV 600 V
• Maximum AC Current Measurement: 200A ac
• Maximum AC Voltage Measurement: 750V ac
• Maximum DC Voltage Measurement: 1000V dc
• Maximum Resistance Measurement: 2kΩ
• Large LCD display with 2000 counts
• Open jaw technology with a 16 mm diameter conductor size
• Integral non-contact AC voltage detector with visual & audible indication
• Continuity and Diode Test
• Display hold and auto-power off
