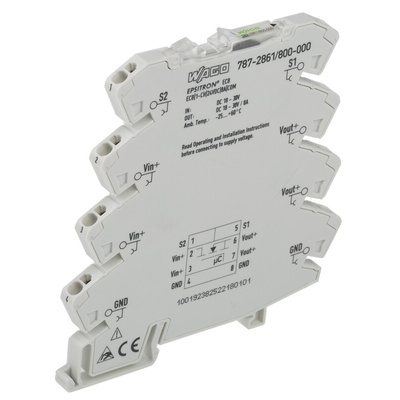

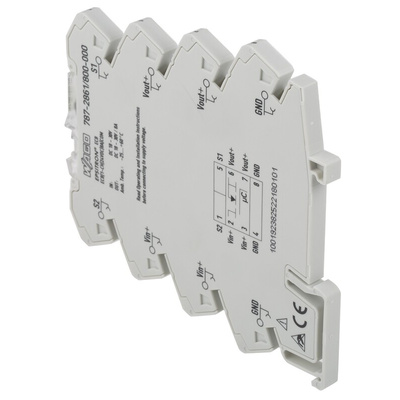

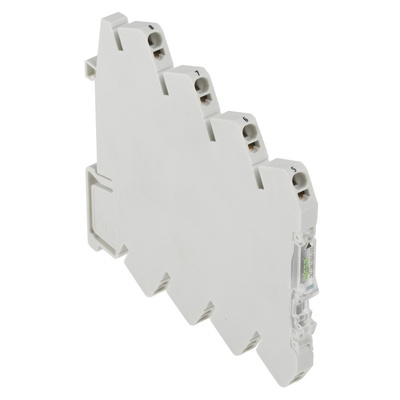

Wago 787-2861/800-000, 8 A, DIN Rail Mount 30V 787-2861, 1 channels Electronic Circuit breaker, Выключатель

Wago Electronic Circuit Breaker

The Wago electronic circuit breaker is a single channel circuit breaker with an output current and voltage capacity of 8A and 30VDC. The DIN rail type of mounting is used for this circuit breaker. The status for the operation of the circuit breaker can be seen by green and red LEDs. The green LED indicates that the channel is ok and red LED shows that the channel is tripped.

Features and Benefits

• Enables the use of an economical, standard power supply
• Minimizes wiring via two voltage outputs and maximizes communing options on both input and output sides
• Prevents power supply overload due to total inrush current thanks to time delayed switching on during interconnected operation
• Reliably and safely trips in the event of an overload and short circuit on the secondary side
• Reset, switch on/off via remote input or local switch
• Space saving ECB
• Status signal as single or group message
• Switch on capacity > 50,000μF

Certifications

• CE certified
• DIN-35 rail (EN 60715)
• EN 61000-6-2
• EN 61000-6-3
• IP20 rated
• UL approved
