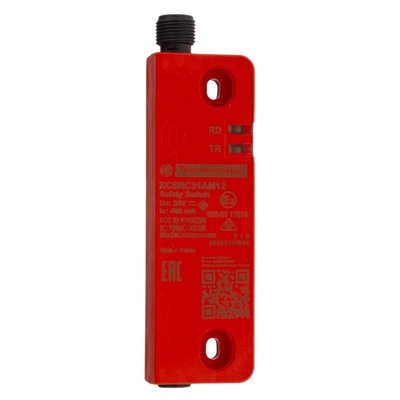

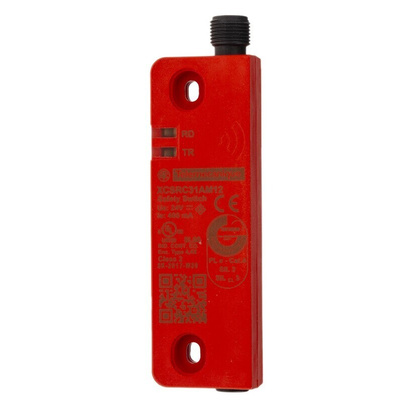

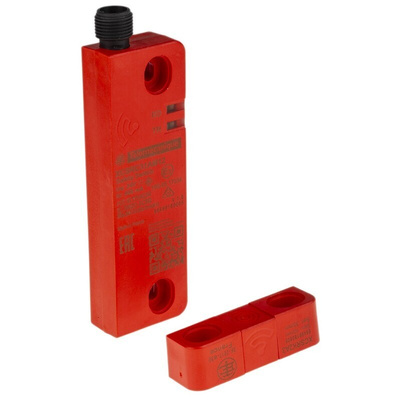

XCSRC31AM12, Telemecanique Sensors XCSRC Series RFID Non-Contact Safety Switch, 24V dc, Valox Housing, 2NO, M12, Выключатель

Telemecanique Sensors RFID Safety Switch

The Telemecanique sensors XCSRC series RFID safety switch is a 24VDC contactless standalone switch with 2 NO contacts. The RFID safety switch is ideal for applications where there cannot be any contact between the switch and the actuator. Also, it is repairing enabled. It has a single male connector. When used in safety guards, it efficiently provides protection and safety to the machines and operators working on them.

Features and Benefits

• 8-pin M12 connector. EDM automatically start sensor with 2 repairing enabled
• High durability
• Industrial degree of protection
• Industry standards compliant
• Multicolour LEDs for indication and signalling
• Operating temperature range between -25°C and 70°C
• Quick response time
• Shock resistant
• Short circuit protection
• Vibration resistant

Applications

• Factory automation
• Food processing industry
• Industrial robots
• Machine guard
• Packaging
• Protective door

Certifications

• CE certified
• CSA certified
• CULus
• DIN EN 61373
• EAC approved
• EN/IEC 60947-5-2-2
• EN/IEC 60947-5-3
• FCC
• IEC 60068-2-27
• IEC 60068-2-6
• IP20 rated
• IP66 rated
• IP67 rated
• IP69K rated
• ISO 14119
• PL = e EN/ISO 13849-1
• RCM
• SIL 3 EN/IEC 61508
• SILCL 3 EN/IEC 62061
• UL listed
