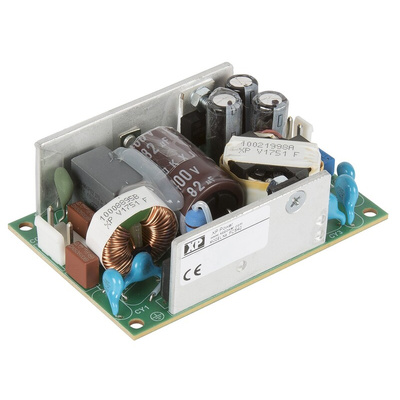

XP Power Switching Power Supply, FCS40US36, 36V dc, 1.11A, 40W, 1 Output, 80 → 264V ac Input Voltage, Источник питания

The FCS40 series is designed to minimize the no load power consumption and maximize efficiency to facilitate equipment design. This range of single output AC-DC power supplies are packaged in a low profile 1.04” height with a foot print of just 2” by 3”. The FCS40 provides up to 40W convection-cooled over the full 90-264 VAC input range, and operates down to 80 VAC with minimal de-rating. The power supply features two AC line fuses and low leakage currents. The low profile and low noise allow the versatile FCS40 series to be used in a wide range of applications.

40W Convection-cooled
Compact Package, 3”x 2”x 1.1”

Single Output
<0.15W No Load Input Po
Class I & Class II Installations

Datasheet
