VGA2VID, StarTech.com Startech 2 port VGA to Composite, S-Video Video Converter, 100mm Length - 640 x 480 Maximum Resolution

VGA2VID VGA to RCA Adapter

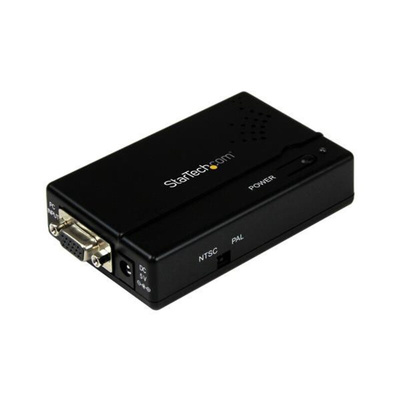

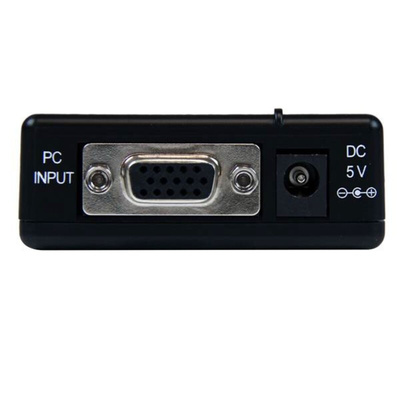

This High Resolution VGA to Composite or S-Video Converter is a simple hardware solution that allows you to convert a VGA/PC video signal into a Composite or S-Video signal for use with a CRT or flat panel display.
The ideal solution for synchronizing monitors with television displays etc., the VGA to Composite/S-Video Converter offers selectable NTSC or PAL format operating modes to ensure compatibility with virtually any configuration.

Features & Benefits

• High resolution inputs from your PC up to 1600x1200
• Provides output in both composite and S-Video formats

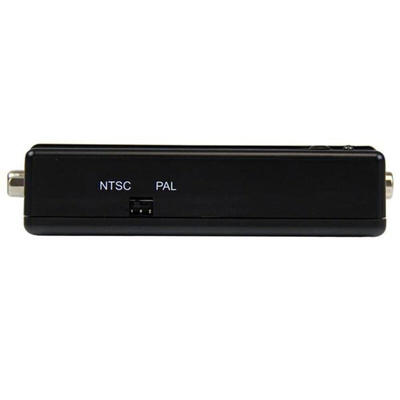

• Supports NTSC and PAL compatible displays
• Image underscan and overscan selectable switch
• Pure hardware design provides an easy to use and install solution
• Automatic detection the scan rate and resolution of the incoming graphic signals without the use of software saves time and hassle
• With support for high resolutions and automatic scaling there is no need to lower resolution settings on your PC

Applications

• An inexpensive way to increase the size of a computer display
• Displays computer screen images on your TV
• Great for boardroom meetings, tradeshows, lectures, and CRT digital signage solutions
• Use your TV to display computer presentations, surfing the Internet, playing video games and more

What’s in the package?

• VGA to Composite/S-Video Converter
• Universal Power Adapter (US/UK/EU/AUS)
• User Manual

FAQs

Does this device also convert in the opposite direction?

Unfortunately no, this device has an intended source and an intended destination.

VGA2VID Datasheet
