MDP2HD4KSW, StarTech.com Startech Mini DisplayPort to HDMI Adapter, 150mm Length - 4K x 2K Maximum Resolution

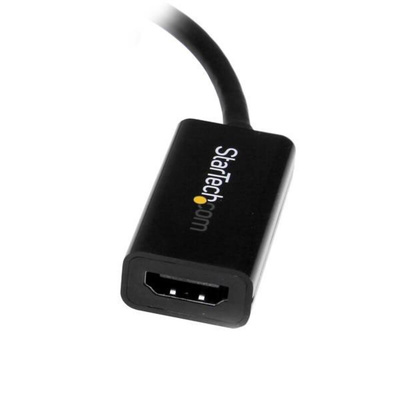

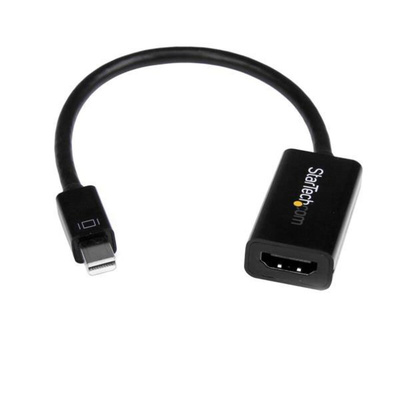

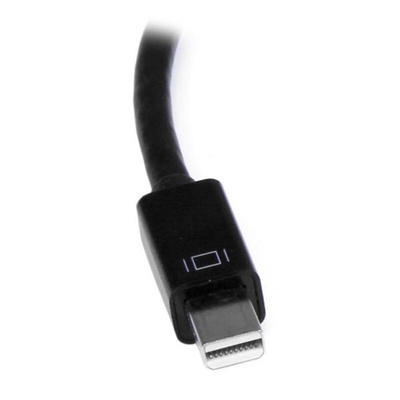

MDP2HD4KSW Mini DisplayPort to HDMI Adapter

The MDP2HD4KSW Mini DisplayPort to HDMI adapter enables you to connect devices such as the MacBook® Pro, MacBook® Air and any Microsoft® Surface™ Pro devices with mDP, to an HDMI display. This adapter is compatible with Mini DisplayPort 1.2 & HDMI 4K @ 30 Hz and as a result can support video resolutions up to Ultra HD (4K) as well as the accompanying digital audio up to 7.1 channel surround sound.

With support for Ultra HD (4K) the mDP to HDMI adapter ensures you can convert Mini DisplayPort to HDMI while maintaining an astonishing picture quality four times the resolution of high-definition 1080p. The adapter is also backward compatible with previous DisplayPort revisions 1.0/1.1 with support for resolutions up to 1080p.

For a hassle-free setup the Mini DisplayPort to HDMI adapter allows for plug-and-play installation without any additional software or drivers. Plus, with a small footprint and lightweight design, the adapter maximizes portability.

To ensure compatibility with any Mini DisplayPort output the mDP adapter offers an active conversion. Active video conversion is required to maintain 4K resolutions when converting Mini DisplayPort to HDMI. An active mDP adapter is also ideal for outputting 1080p resolutions by ensuring compatibility with graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity).

To support your Mac® the HDMI converter is compatible with Intel® Thunderbolt™ devices that output a DisplayPort video signal.

With a sleek uniform white design the MDP2HD4KSW looks great next to your Mac®, and is backed by a 2-year StarTech.com warranty, and lifetime technical support.

Features & Benefits

• Supports video resolution up to 4K
• Fully compliant with DisplayPort 1.2 revision
• Supports HDMI 4K @ 30 Hz
• Compatible with Intel® Thunderbolt™ devices that are capable of outputting a DisplayPort signal
• Compact, lightweight design
• Plug-and-play installation
• No power adapter required
• Active Mini DisplayPort conversion
• Prepare for the next generation of displays, with support for Ultra HD 4K video
• Maximize compatibility, with support for DisplayPort revisions 1.2/1.1/1.0
• Easy to carry as a laptop accessory, with a compact design and no external power adapter needed

Applications

• Connect your 4K HDMI display to a Mini DisplayPort output port
• Carry with your laptop for BYOD office applications
• Use an HDMI display as a secondary monitor for your Mini DisplayPort computer
• Use your Thunderbolt port to connect your MacBook Pro / MacBook Air to an HDMI Display

What’s in the package?

• Mini-DisplayPort to HDMI Active Adapter

FAQs

Does this device require me to install drivers, or perform any other setup tasks?

This device is plug and play. It does not use any drivers, and does not require any setup tasks other than plugging in the source (for example, a computer) and the destination (for example, a monitor).
