DP2HD4KS, Startech DisplayPort to HDMI Adapter 150mm - 4K x 2K

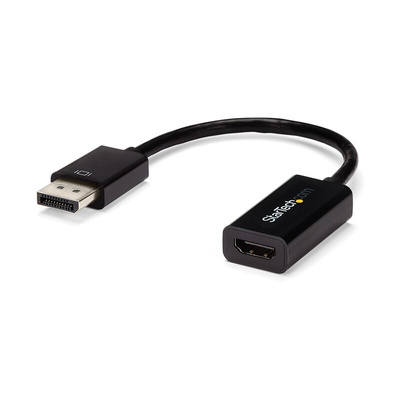

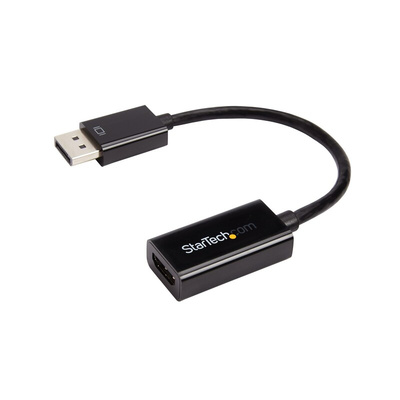

DP2HD4KS DisplayPort to HDMI Adapter

The DP2HD4KS DisplayPort to HDMI adapter enables you to connect a DisplayPort-equipped desktop or laptop computer, such as the HP EliteBook 8570p / 8470p, to an HDMI display. This adapter is compatible with DisplayPort 1.2 & HDMI 4K @ 30 Hz and as a result can support video resolutions up to Ultra HD (4K) as well as the accompanying digital audio up to 7.1 channel surround sound.

With support for resolutions up to Ultra HD (4K) the DP to HDMI adapter ensures you can convert DisplayPort to HDMI while maintaining an astonishing picture quality four times the resolution of high-definition 1080p. The adapter is also backward compatible with previous DisplayPort revisions 1.0/1.1 with support for resolutions up to 1080p.

For a hassle-free setup the DisplayPort to HDMI adapter allows for plug-and-play installation without any additional software or drivers. Plus, with a small footprint and lightweight design, the adapter maximizes portability.

To ensure compatibility with any DisplayPort output the DP adapter offers an active conversion. Active video conversion is required to maintain 4K resolutions when converting DisplayPort to HDMI. An active DP adapter is also ideal for outputting 1080p video resolutions by ensuring compatibility with graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity).

The DP2HD4KS is backed by a 2-year StarTech.com warranty, and lifetime technical support.

Features & Benefits

• Supports video resolutions up to 4K
• Fully compliant with DisplayPort 1.2 revision
• Supports HDMI 4K @ 30 Hz
• Compact, lightweight design
• Plug-and-play installation
• No power adapter required
• Active DisplayPort conversion
• Prepare for the next generation of displays, with support for Ultra HD 4K video
• Maximize compatibility, with support for DisplayPort revisions 1.2/1.1/1.0
• Easy to carry as a laptop accessory, with a compact design and no external power adapter needed

Applications

• Connect a DisplayPort 1.2 video source to a 4K HDMI display
• Carry with your laptop for BYOD office applications
• Extend your Desktop onto a secondary HDMI display using an available DisplayPort port

What’s in the package?

• DisplayPort® to HDMI® Active Adapter

FAQs

Does this device also convert in the opposite direction?

Unfortunately no, this device has an intended source and an intended destination. Refer to the title of the webpage for this order.

DP2HD4KS Datasheet
