XGCS491B201, Telemecanique Sensors 60 mA Wireless RFID tags, 24 V dc

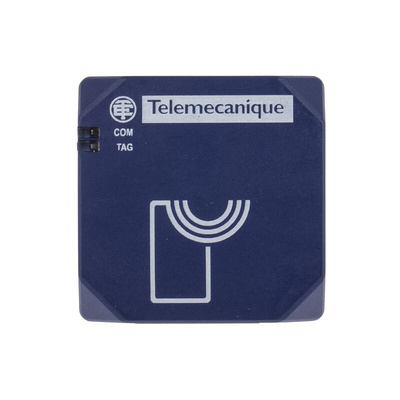

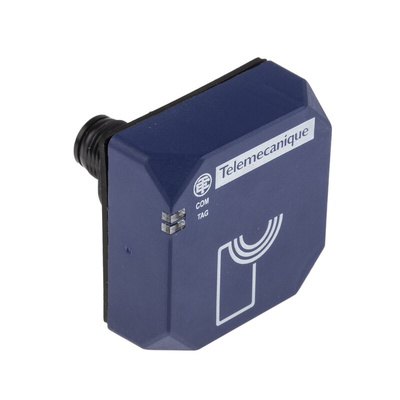

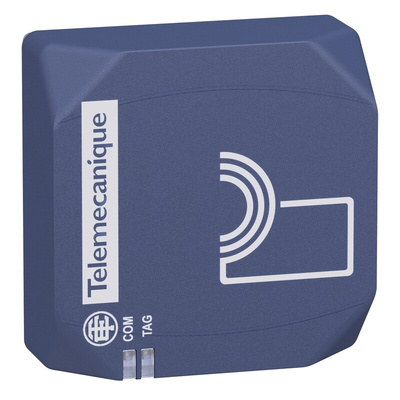

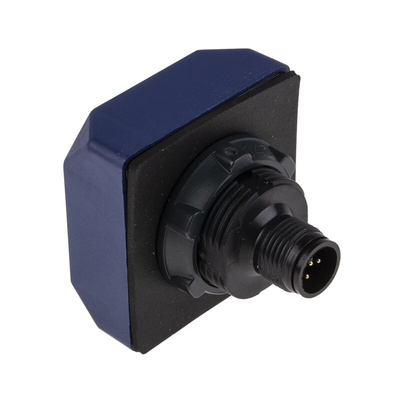

Telemecanique Sensors RFID Reader, 70 to 100mm Detection Range, 13.56 MHz Frequency - OsiSense XG Series - XGCS491B201

Do you need a reliable control device to limit access to sensitive areas in your industrial environments? Use this RFID reader from Telemecanique Sensors. It can detect tags at a distance of 70 to 100mm from its surface, so supports contactless operation. The unit uses a PNP transistor to perform switching functions reliably. For energy efficiency and reduced heat dissipation in the system, it consumes a low current of less than 60mA. You can use this reader with RFID microchip Texas (Tag-it HFI), Fujitsu and NXP devices, making it a versatile choice.

Features & Benefits

• Operating temperature range between -25°C and +70°C makes it suited to harsh conditions
• IP65 rating means it's dustproof and able to withstand low-pressure water jets from all directions
• Supply voltage between 19.2 and 29V DC for use in low-duty to medium-duty applications
• 2 signalling LEDs for a clear visual indication of operating status

Applications

• Robotics and automation systems
• Manufacturing industry

What are the dimensions of this unit?

This unit has dimensions of 40 (L) x 40 (W) x 39.5mm (D), so takes up minimal space in your setup.
